PER-T499

Home  >   AAEON  >   Computing Systems  >
Machine Vision Systems

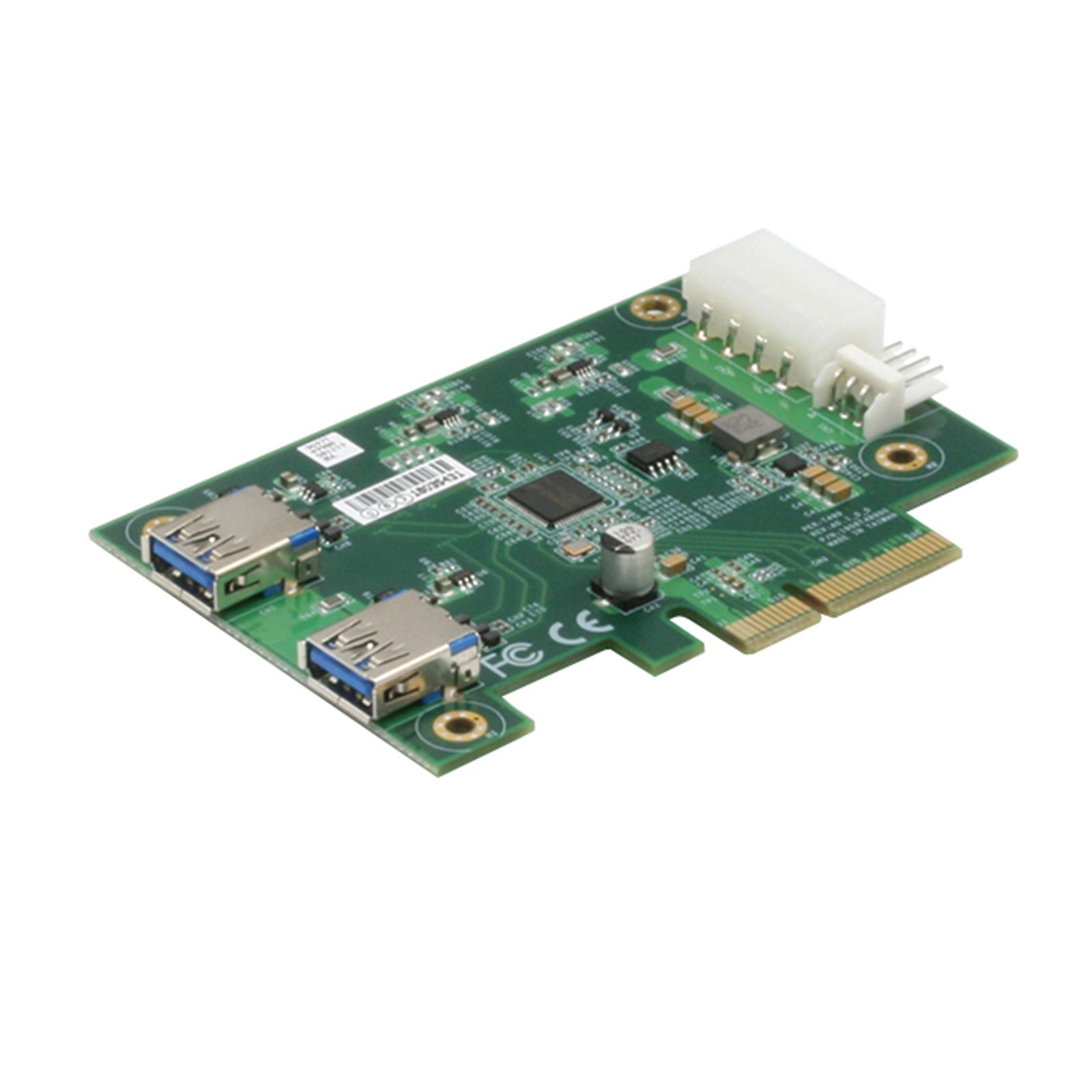

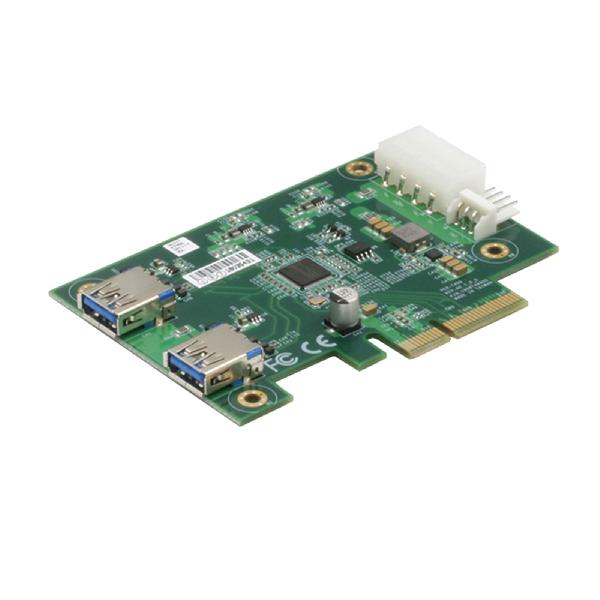

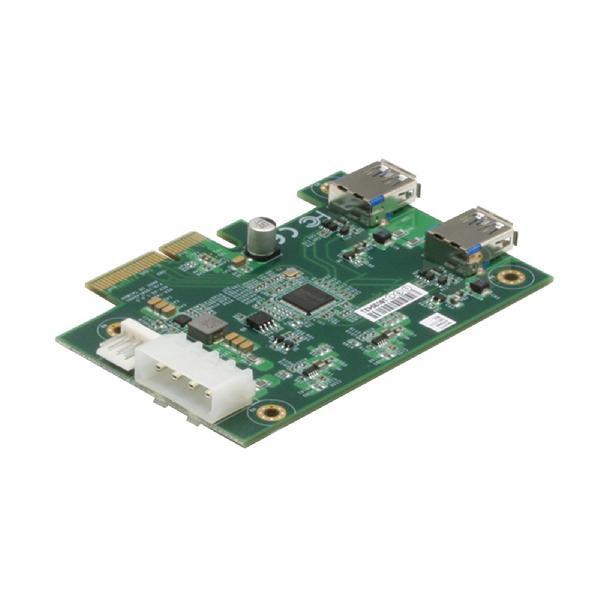

2-Port USB 3.2 Gen 2 PCI-E [x4] Frame Grabber Card

Product Feature

  • PCI-Express® [x4] Gen. 3 Compliant
  • 1 Independent USB 3.2 Gen 2 Host Controller
  • Supports Bandwidth 10 Gb/s for Each Port
  • Supports Locakable USB Connector

2-Port USB 3.2 Gen 2 PCI-E [x4] Frame Grabber Card

SYSTEM

BUS INTERFACEPCI-Express® [x4], Gen 3
PCI-Express Specification Revision 3.0 at 8GT/s
USB1 independent USB 3.2 Gen 2 host controllers
900mA @ 5V for each port
Compliant with USB 3.2 Gen 2 specification Revision 1.0
USB CONNECTOR2 USB 3.2 Gen 2 Type-A connectors with lockable screw threads
ETHERNET—
OS SUPPORTWindows® 10, Windows® 8.1 (32/64-bit), Windows® 7 (32/64-bit) Linux

POWER SUPPLY

POWER REQUIREMENTFrom PCIe bus

MECHANICAL

DIMENSION100mm(W) x 71.1mm(D)

ENVIRONMENTAL

OPERATING TEMPERATURE0°F ~ 140°F (0°C ~ 60°C)
(according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE-49°F ~ 185°F (-45°C ~ 80°C)
STORAGE HUMIDITY5 ~ 95% @ 40°C, non-condensing
