PCI-Express® [x4], Gen 2 PCI-Express Specification Revision 2.0 at 5GT/s
USB
—
USB CONNECTOR
—
ETHERNET

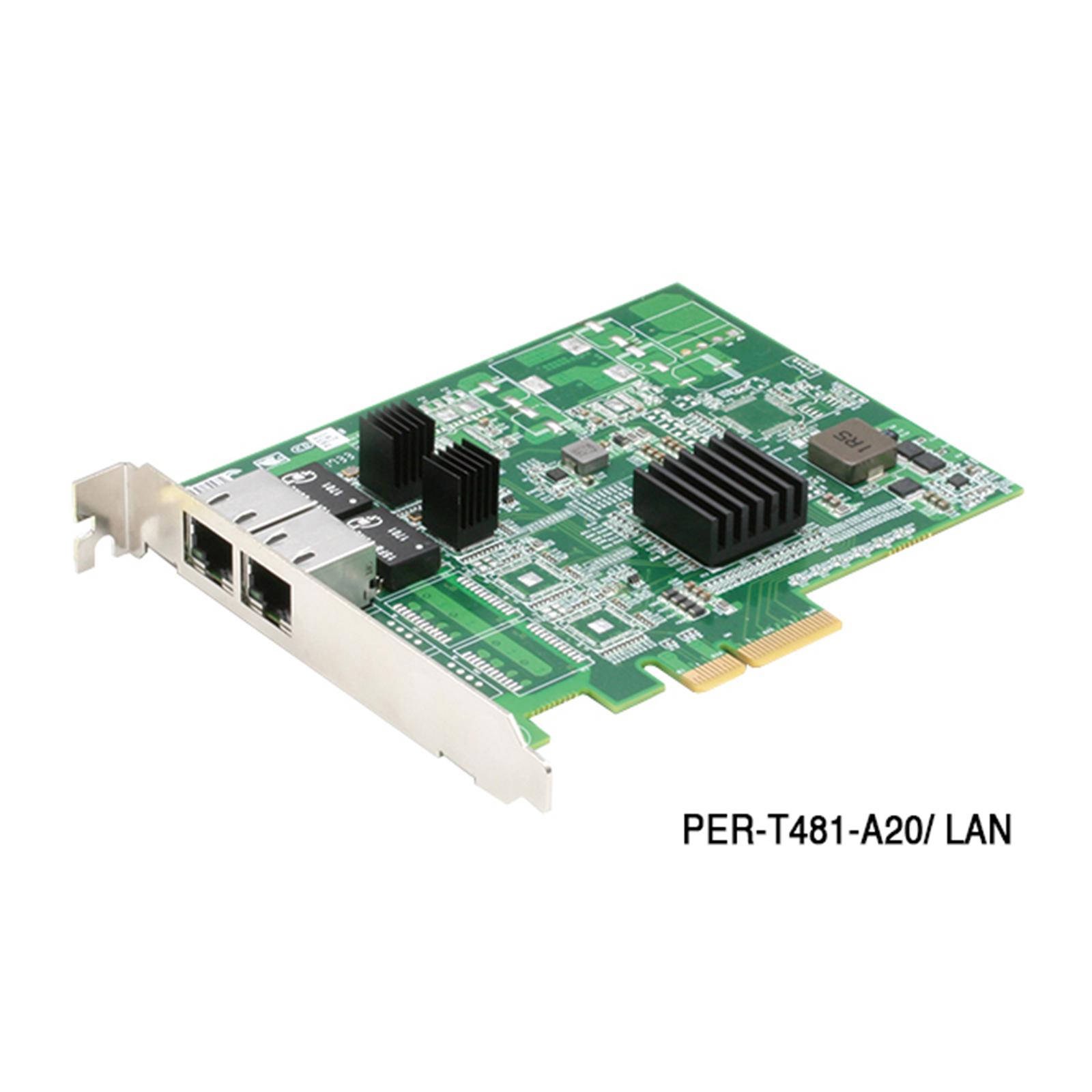

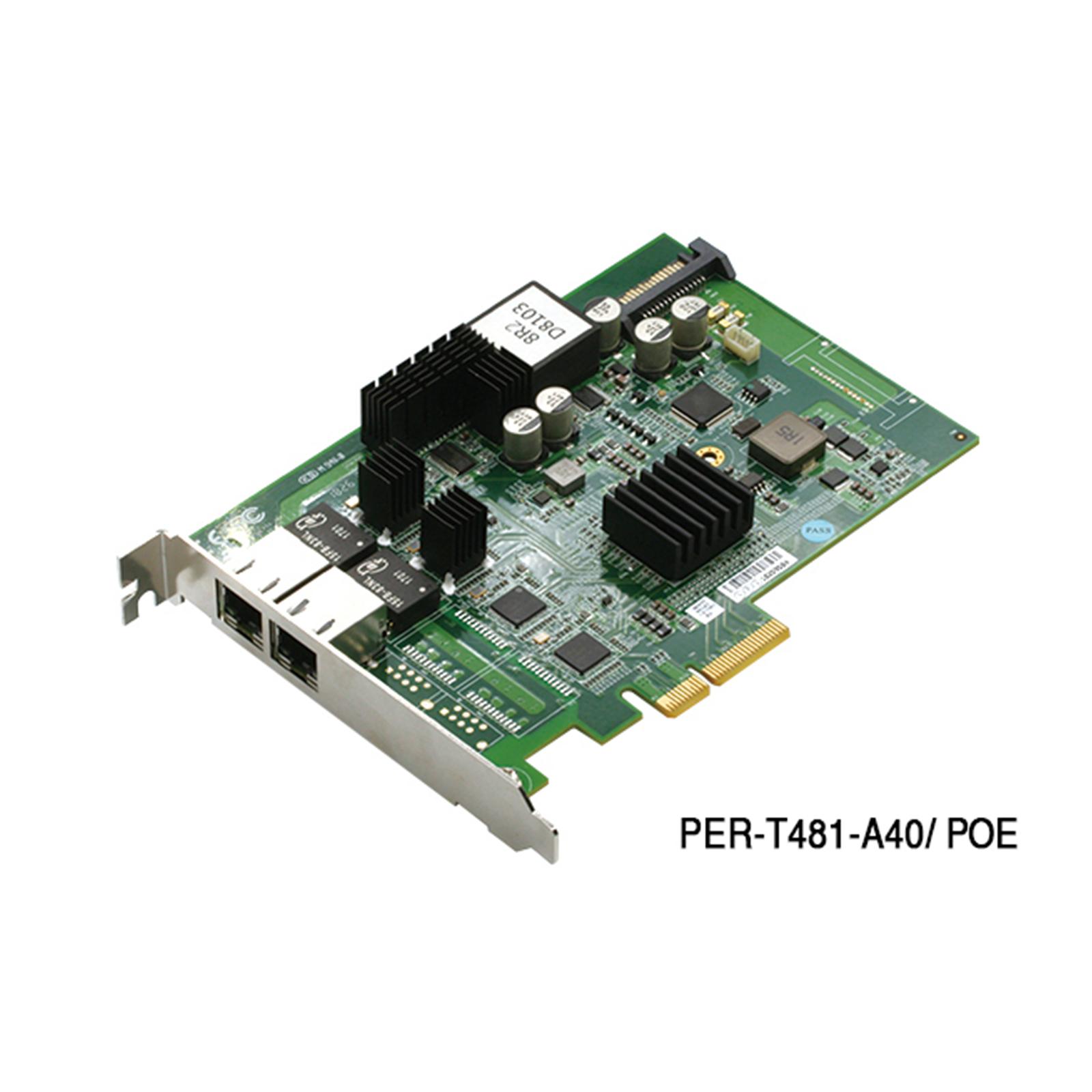

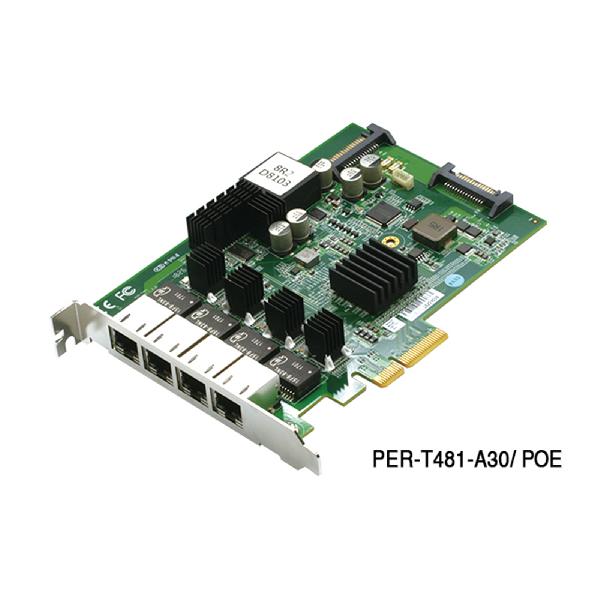

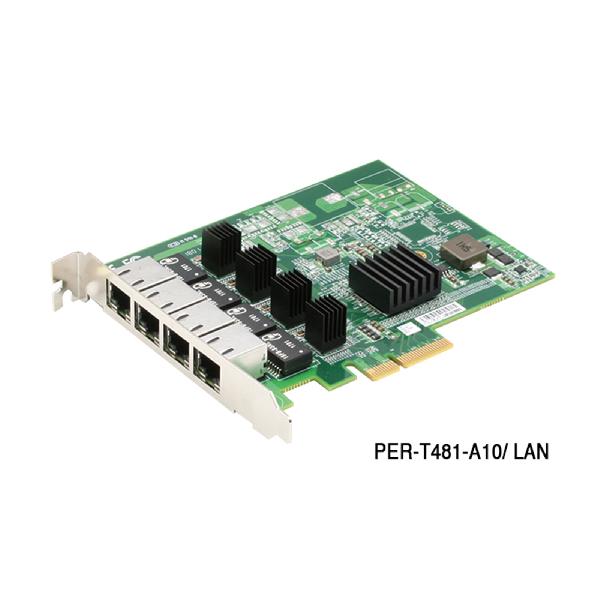

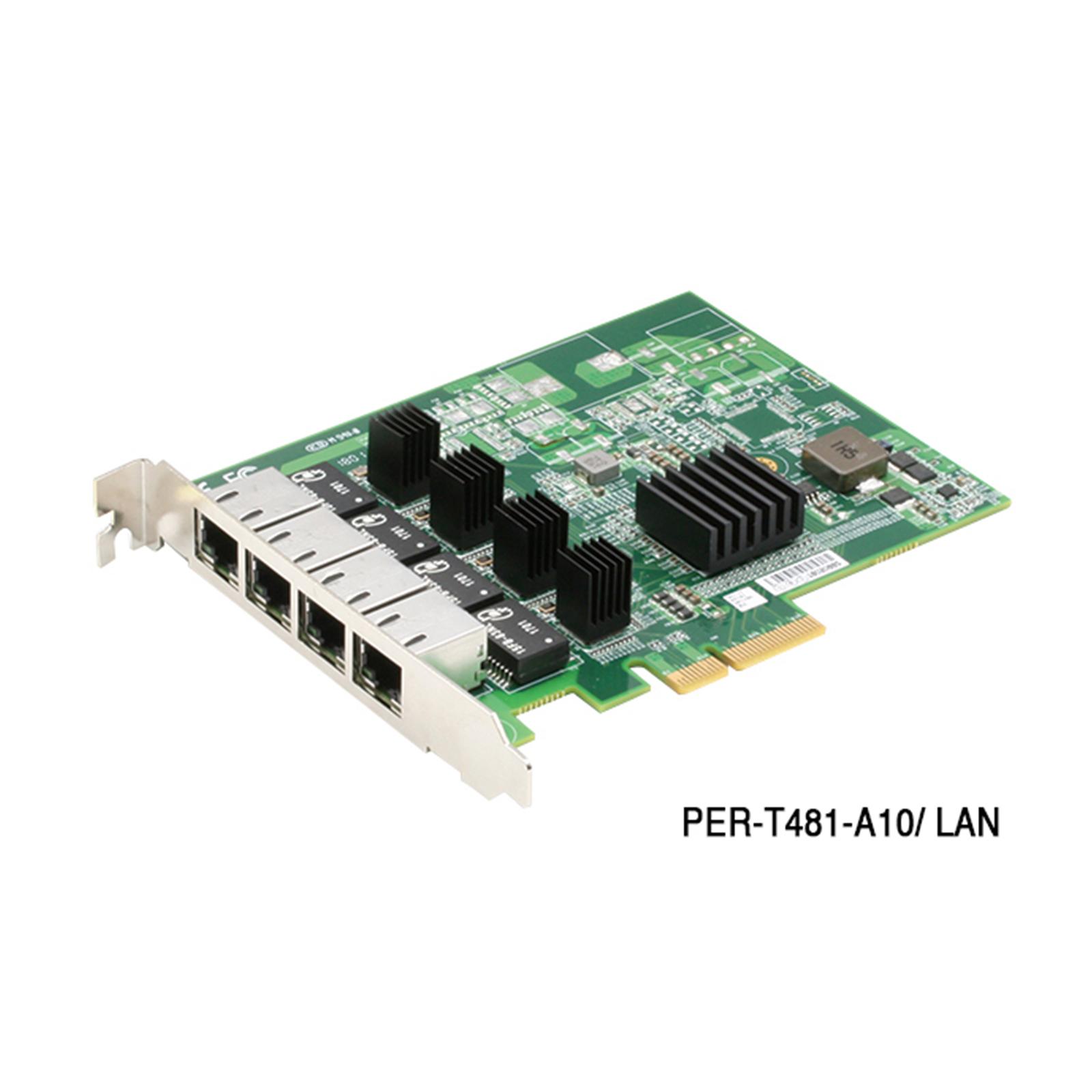

LAN: Intel® i211AT Ethernet Controller x 4 (A10) Intel® i211AT Ethernet Controller x 2 (A20) Fully compliant with IEEE 802.3 and IEEE 802.3u Support IEEE 1588 precision time synchronization POE: Intel® i211AT Ethernet Controller x 4 (A30) Intel® i211AT Ethernet Controller x 2 (A40) Fully compliant with IEEE 802.3 and IEEE 802.3u Support IEEE 1588 precision time synchronization Support IEEE 802.3 at
OS SUPPORT
LAN: Windows® 10(32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), Linux POE: Windows® 10(32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit) (Linux not supported)
POWER SUPPLY
POWER REQUIREMENT
LAN: Max. 10W POE: 4POE DUAL SATA Power (15 pin) DC Input 12~24V,Max. 90W for 4ports (A30) 2POE DUAL SATA Power (15 pin) DC Input 12~24V,Max. 60W for 2ports (A40)
MECHANICAL
DIMENSION
LAN: 110mm(W) x 136mm(D) POE: 112mm(W) x 150mm(D)
ENVIRONMENTAL
OPERATING TEMPERATURE
LAN: -4°F ~ 140°F(-20°C ~ 60°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) POE: -4°F ~ 131°F(-20°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; 90W loading) (A30) -4°F ~ 131°F(-20°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; 60W loading) (A40)
STORAGE TEMPERATURE
-49°F ~ 185°F(-45°C ~ 80°C)
STORAGE HUMIDITY
5 ~ 95% @ 40°C, non-condensing
