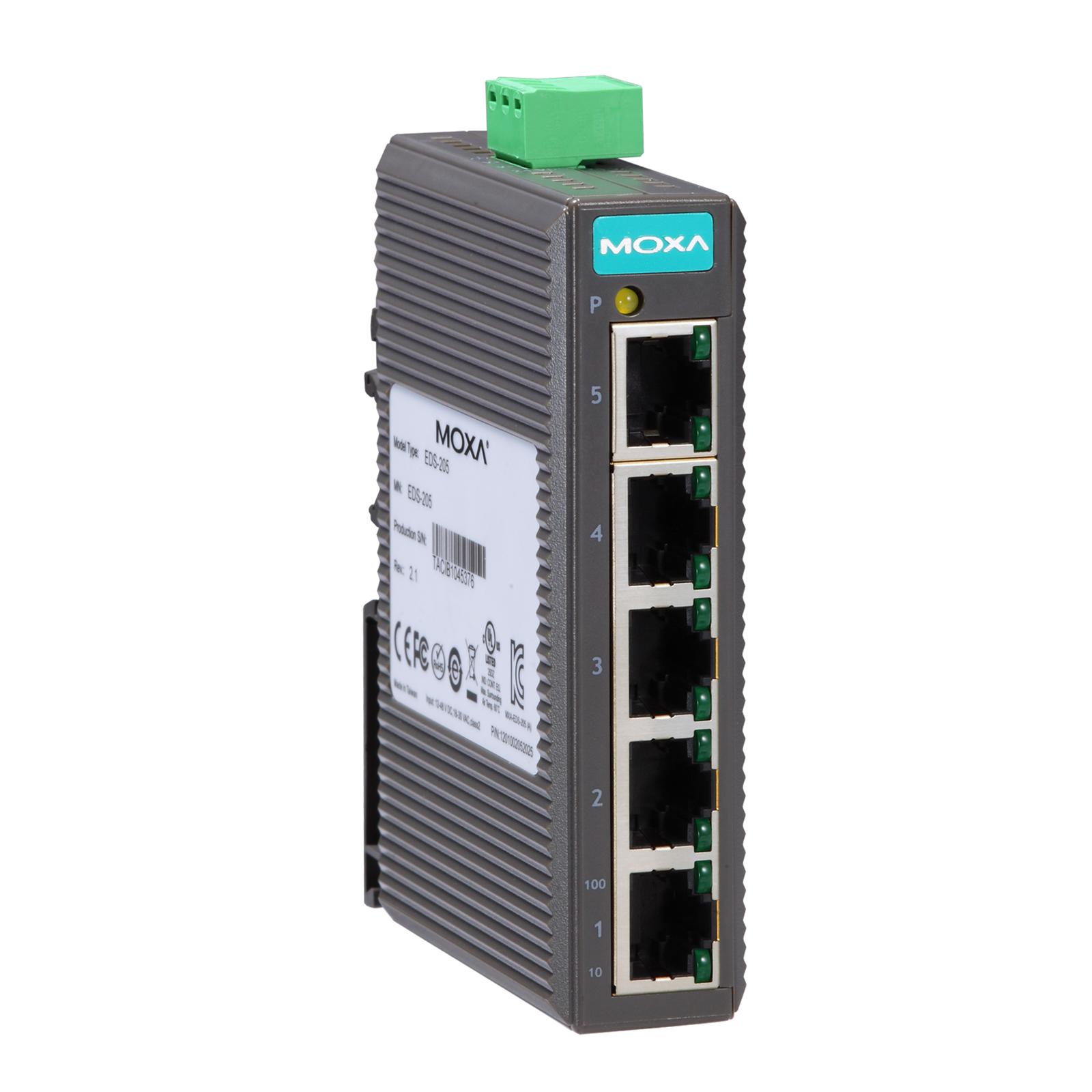

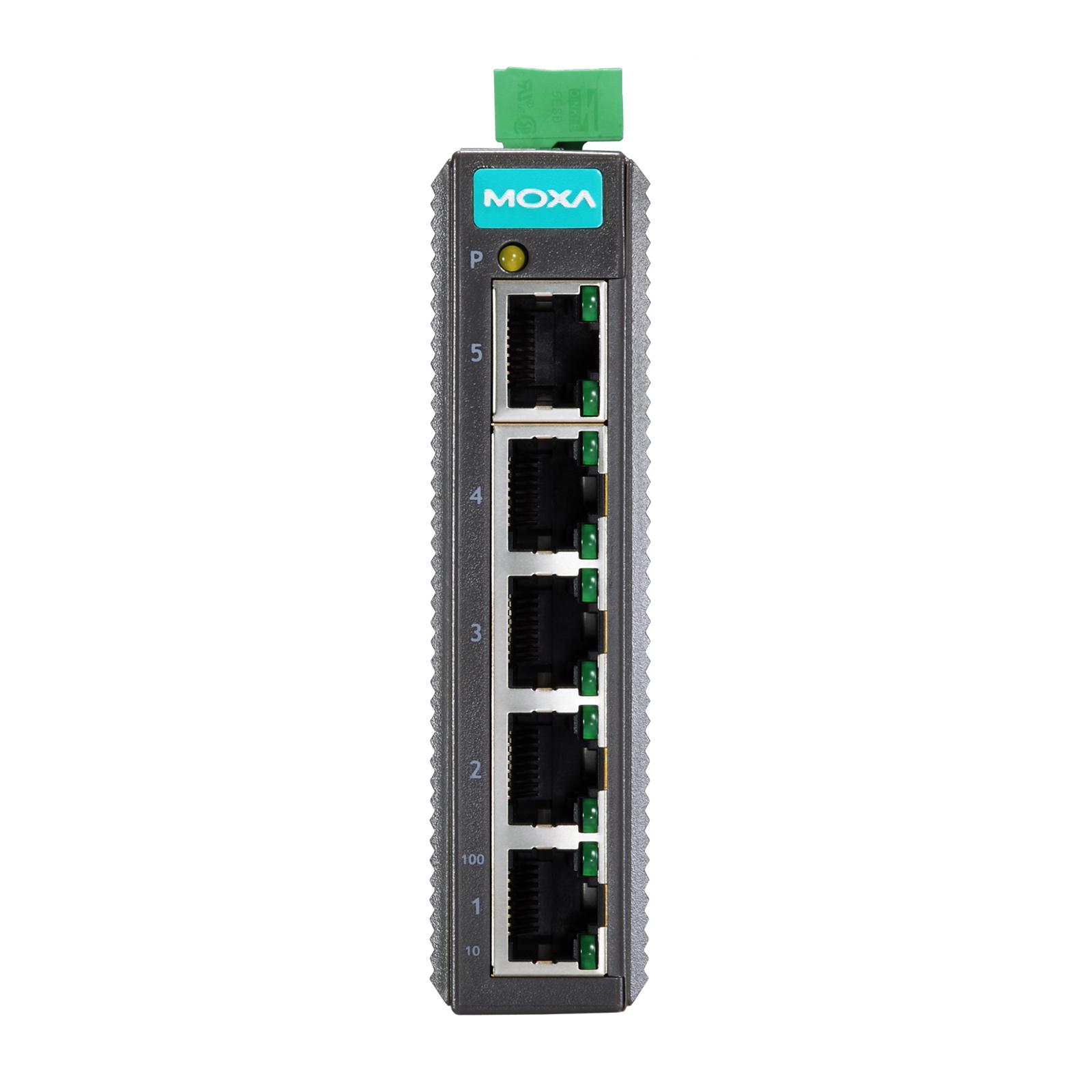

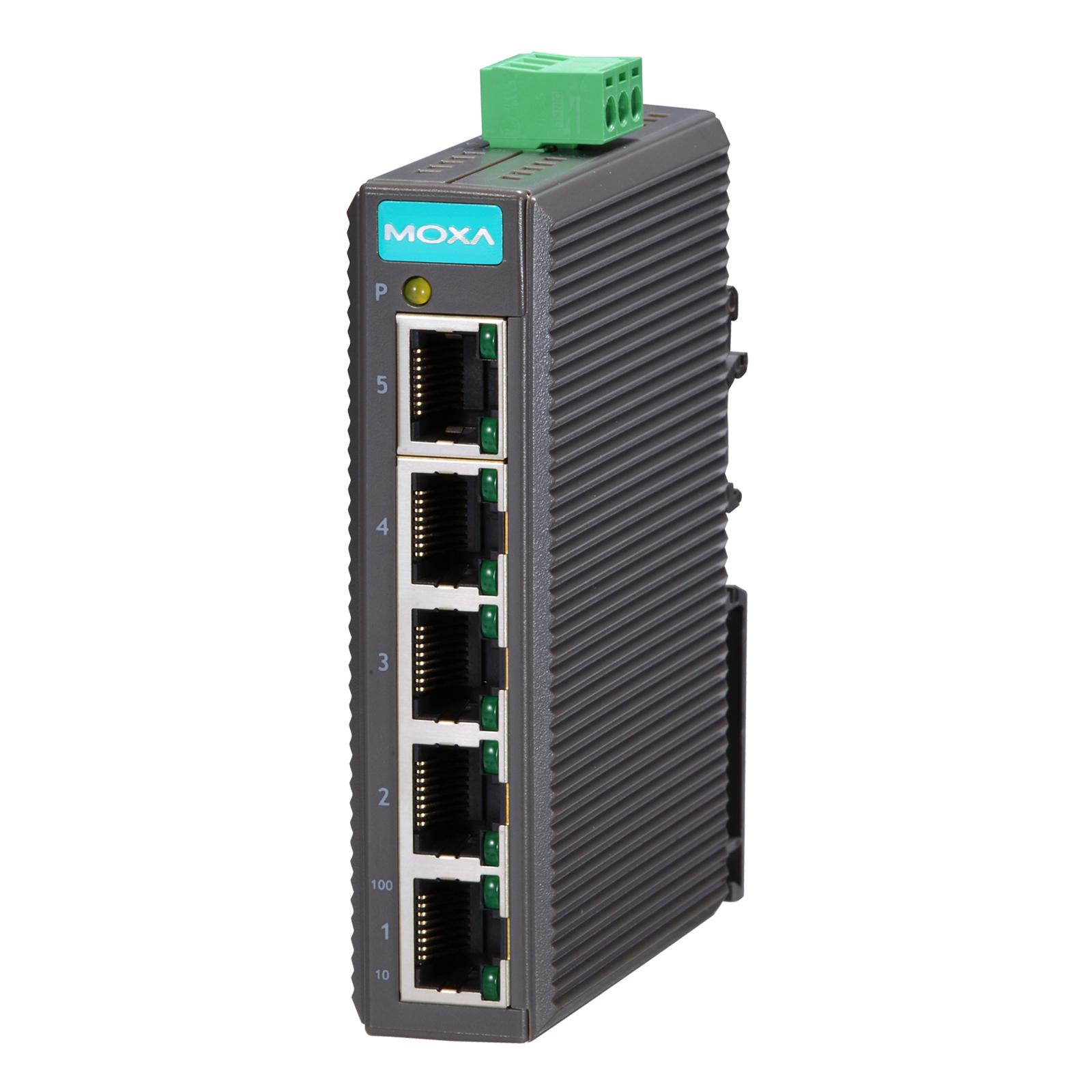

EDS-205 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Unmanaged Switches

5-port entry-level unmanaged Ethernet switches

Product Feature

  • 10/100BaseT(X) (RJ45 connector)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • -10 to 60°C operating temperature range

Introduction

The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.

Ethernet Interface

StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed

Switch Properties

Processing TypeStore and Forward
MAC Table Size1 K
Packet Buffer Size 512 kbits

 Power Parameters

Input Voltage24 VDC
Input Current0.11 A @ 24 VDC
Operating Voltage12 to 48 VDC
Connection1 removable 3-contact terminal block(s)
Overload Current Protection1.1 A @ 24 VDC
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingPlastic
IP RatingIP30
Dimensions24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)
Weight135 g (0.30 lb)
InstallationDIN-rail mounting

Environmental Limits

Operating Temperature-10 to 60°C (14 to 140°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 60950-1, UL 508
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
FreefallIEC 60068-2-31

MTBF

Time3,915,945 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 Years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-205 Series Datasheet v1.1 13 Febuary 2020

EDS-205

10/100BaseT(X) Ports RJ45 Connector 5
Housing Material Plastic
Operating Voltage 12-48 VDC
Operating Temp. -10 to 60°C
