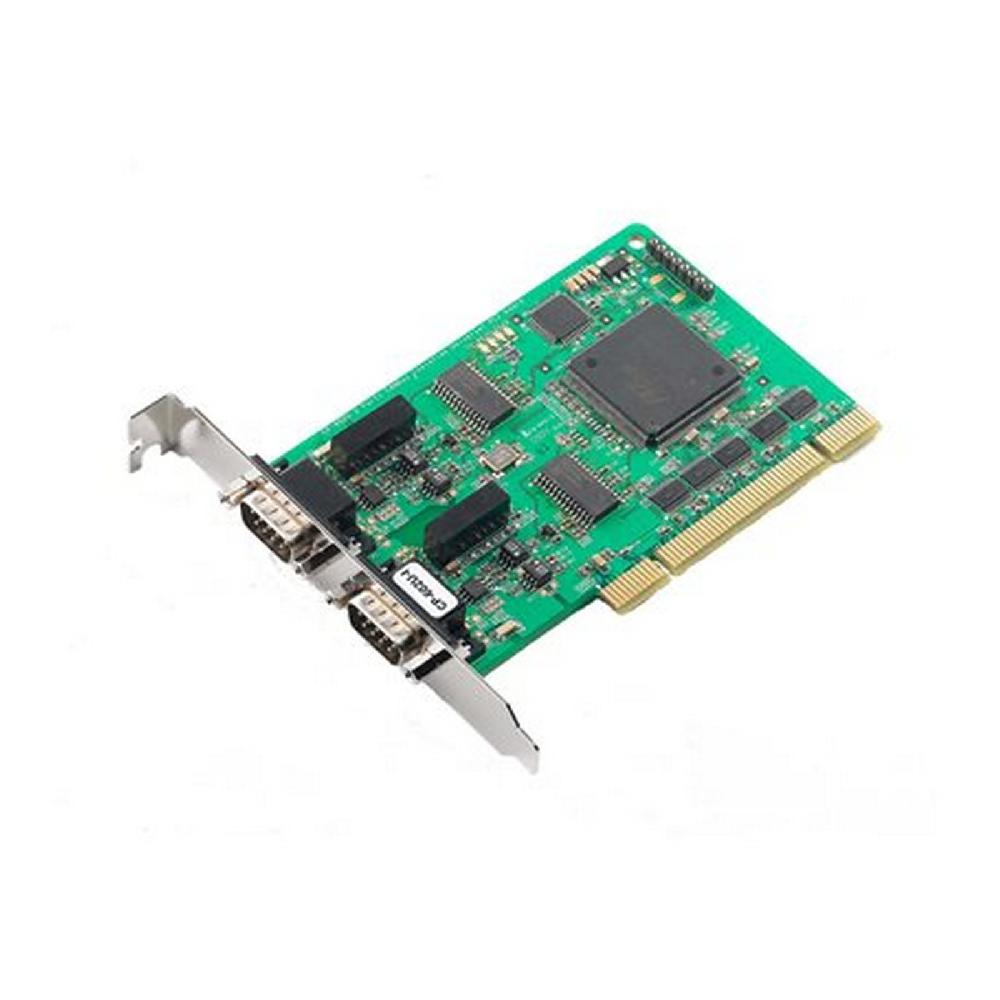

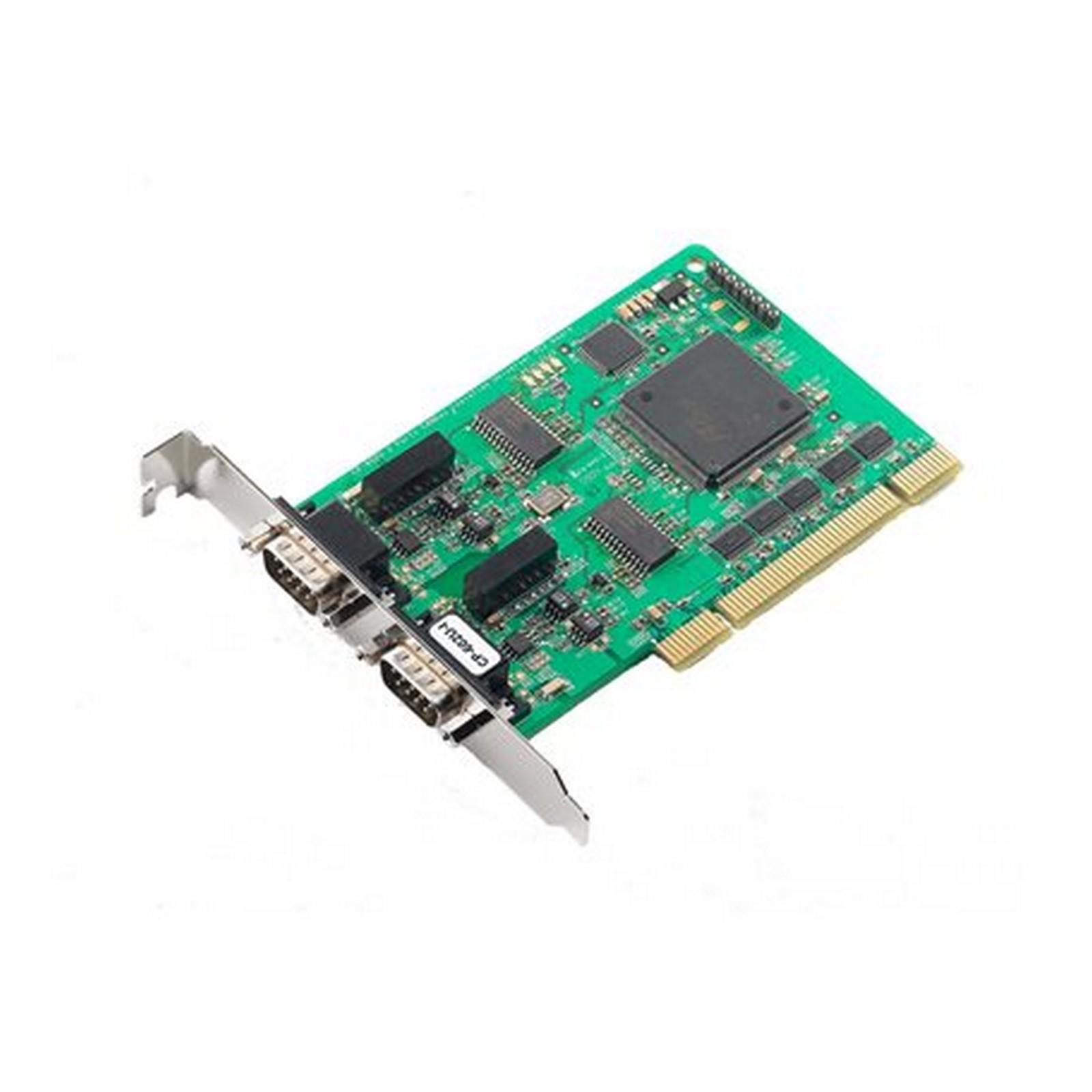

Moxa’s CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
CAN Interface | |
| Baudrate | 10/20/50/125/250/500/800/1000 kbps, user-defined |
| Connector | DB9 male |
| No. of Ports | 2 |
Environmental Limits | |
| Operating Temperature | CP-602U-I w/o Cable: 0 to 55°C (32 to 131°F) CP-602U-I-T w/o Cable: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | 1,989,990 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| CP-602U-I Series | Datasheet | 1.0 | 15 March 2021 |
| Serial Bus | Universal PCI |
| CAN Specification | CAN 2.0 A/B |
| No. of Serial Ports | 2 |
| Serial Isolation Protection | 2 kV |
| Operating Temp. | 0 to 55°C |
| Serial Bus | Universal PCI |
| CAN Specification | CAN 2.0 A/B |
| No. of Serial Ports | 2 |
| Serial Isolation Protection | 2 kV |
| Operating Temp. | -40 to 85°C |
