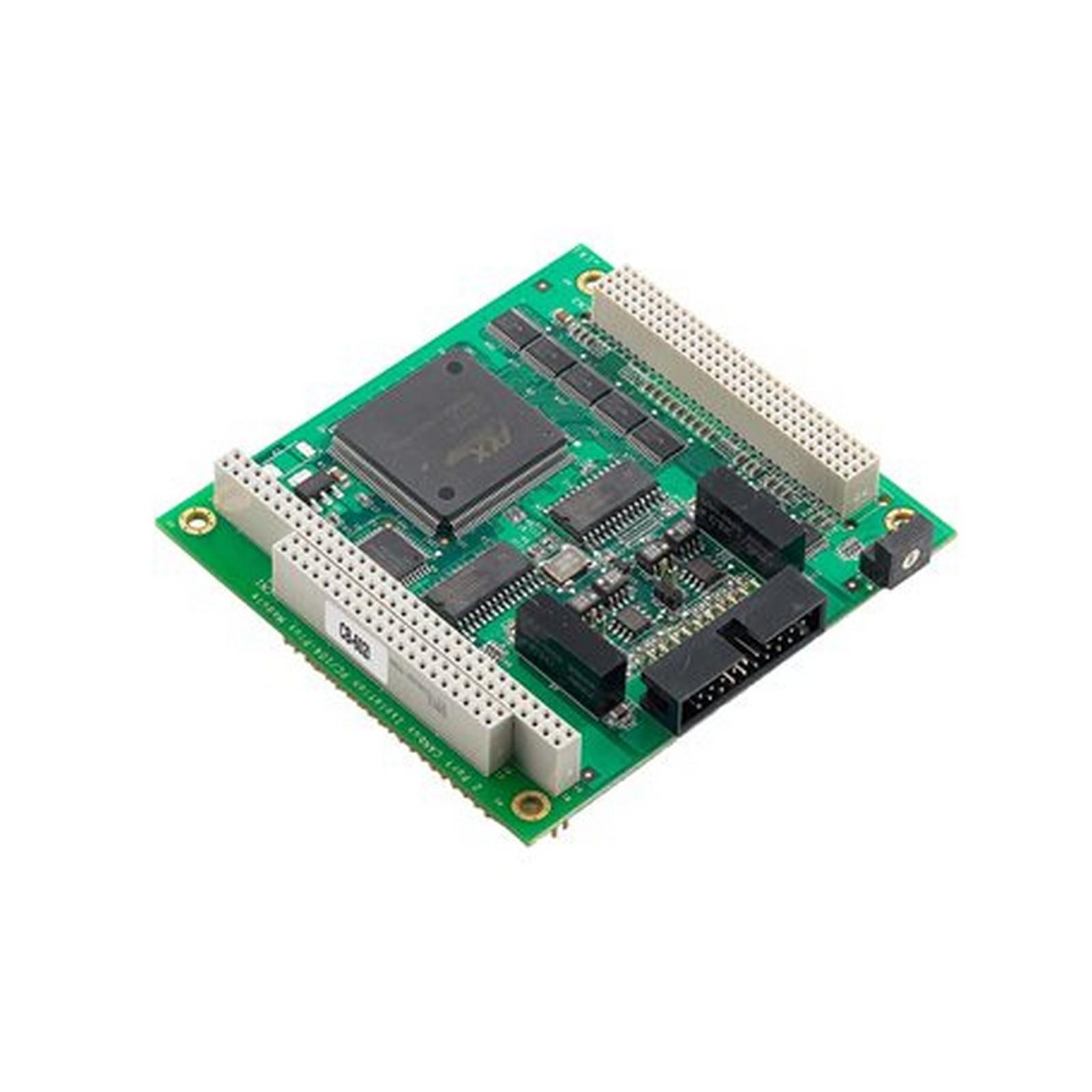

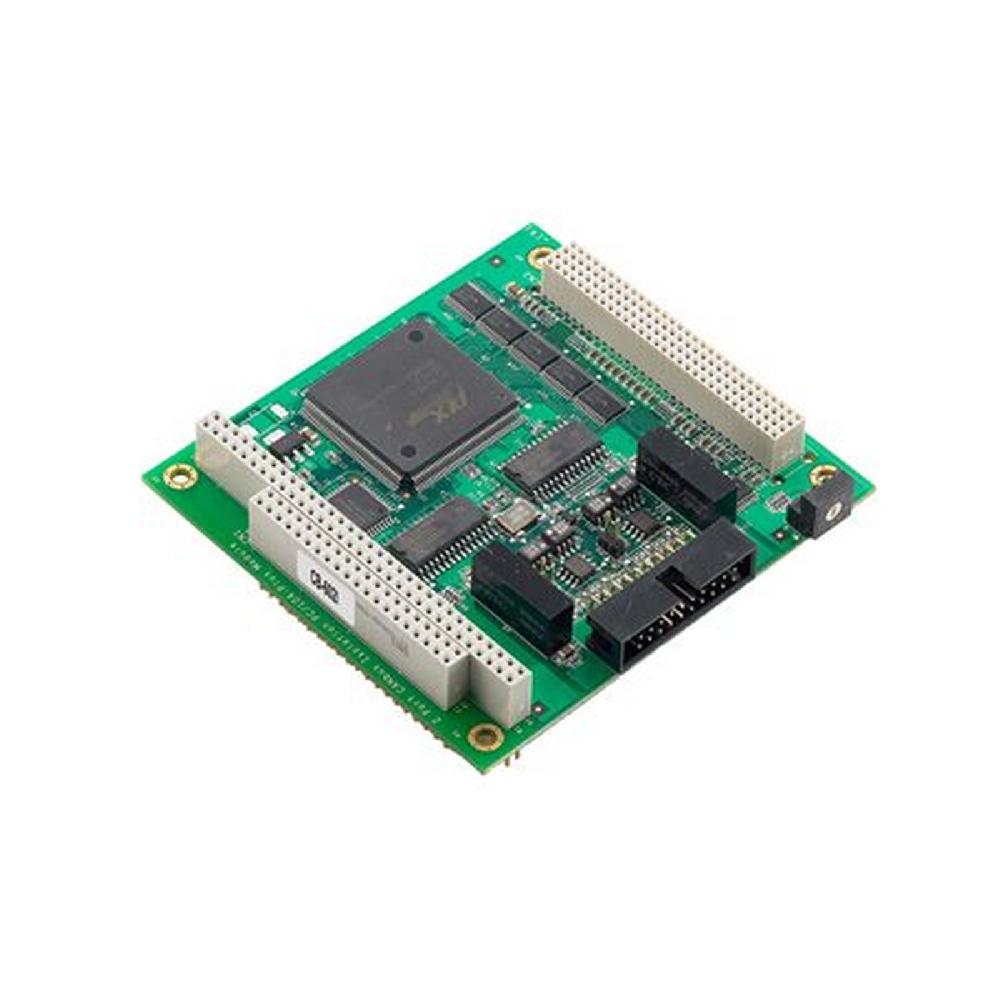

CB-602I Series

Home > MOXA > Industrial Edge Connectivity >
Multiport Serial Boards > CANbus Serial Boards

2-port CAN interface PC/104-Plus modules with 2 kV isolation

Product Feature

Supports CAN 2.0A and CAN 2.0B
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 kV electrical isolation
LED for transmit/receive status on each port
Optional 120-ohm terminal resistor for CAN bus network
DLL library and examples included
Windows drivers provided

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/productview.php on line 633

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/productview.php on line 633

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/productview.php on line 638

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/productview.php on line 639

บริษัท พีที ออโตเมชั่น (ไทยแลนด์) จำกัด

เลขที่ 9 อาคารภคินท์ ชั้น 9 ห้องเลขที่ 901 ถนนรัชดาภิเษก แขวงดินแดง เขตดินแดง กรุงเทพฯ 10400
โทรและแฟกซ์ : +66(0)-2020-3000
อีเมล์ : product@pt-automations.com
Facebook : facebook.com/ptautomations

จันทร์ ถึง ศุกร์ เวลา 9.00 น. – 18.00 น.

Serial Interface
Isolation	2 kV
Max. No. of Boards per PC	8
CAN Interface
Baudrate	10/20/50/125/250/500/800/1000 kbps, user-defined
Connector	20-pin box header
No. of Ports	2
Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
Declaration
Green Product	RoHS, CRoHS, WEEE
MTBF
Time	248,563 hrs
Standards	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
CB-602I Series		Datasheet	1.0	15 March 2021

Serial Bus	PC/104-Plus
CAN Specification	CAN 2.0 A/B
No. of Serial Ports	2
Serial Isolation Protection	2 kV
Operating Temp.	0 to 55°C

Serial Bus	PC/104-Plus
CAN Specification	CAN 2.0 A/B
No. of Serial Ports	2
Serial Isolation Protection	2 kV
Operating Temp.	-40 to 85°C

CB-602I Series

Product Feature

Serial Interface

CAN Interface

Environmental Limits

Standards and Certifications

Declaration

MTBF

Warranty

CB-602I w/o Cable

CB-602I-T w/o Cable
