VPort 06EC-2V Series

Introduction

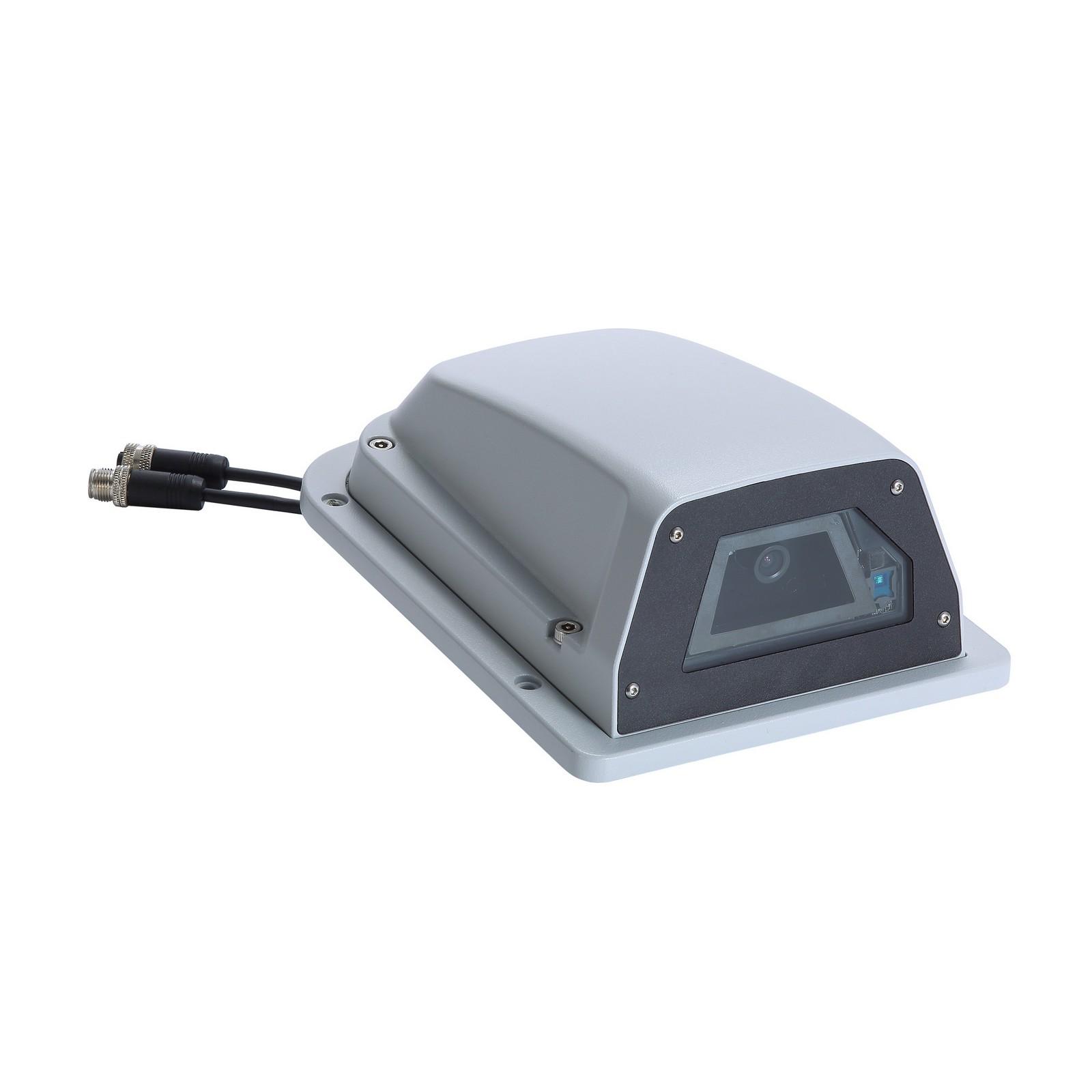

The VPort 06EC-2V outdoor IP cameras support 1080P (1920 x 1080) resolution video images at up to 30 frames per second. iCapTrue’s new image enhancement technology uses an advanced AE and AWB algorithm to produce better image quality in a variety of environments. The chassis design is IP67-rated, and has been shown to provide ample dust and rain protection, and with a built-in front glass heater and a tough outer cover, the cameras have the versatility and ruggedness needed for outdoor mobile IP video surveillance applications. In addition, models capable of operating between -40 to 70°C are available.

Memory
microSD Slot	SDXC
Input/Output Interface
Digital Output Channels	1
Contact Current Rating	Resistive load: 1 A @ 24 VDC
Connector	5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)	1
Ethernet Software Features
Protocols	TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
Password	User-level password protection
Filter	IP address
Encryption	HTTPS
Power Parameters
No. of Power Inputs	2
Source of Input Power	PoE (IEEE 802.3af)
Input Voltage	24 VDC for front-window heater (for defrosting)
Input Current	0.167 A @ 48 VDC, 0.9 A @ 24 VDC
Power Connector	M12 connector
Note	PoE is for powering the camera; 24 VDC is for powering the heater
Camera Characteristics
Sensor	1/3-in 1080P progressive scan CMOS
Lens	VPort 06EC-2V36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39° VPort 06EC-2V42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34° VPort 06EC-2V60M Series: f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24° VPort 06EC-2V80M Series: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°
Minimum Illumination	Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
Day & Night	Auto/Color/BW; ICR control
ICR Control	Auto
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio	Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)	Built-in 2D/3D DNR
WDR (wide dynamic range)	100 dB
AGC (auto gain control)	2X, 4X, 8X, 16X
Flickerless Control	Automatic, 50 Hz, 60 Hz modes
Image Rotation	Flip, Mirror, 90°, 180°, 270° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Camera Angle	Pan: ±5°, Tilt: +10/-5° (controlled manually)
Video Interface
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	4 independent H.264 or MJPEG video streams
NTSC/PAL	Auto-sensing or manual
Video Resolution and FPS (frames per second)	Read more
Video Viewing	DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients Digital PTZ
Camera Software Development
Video Standards	ONVIF Profile S
Camera Alarm Software Features
Intelligent Video	Camera tampering detection
Video Motion Detection	3 independently configurable areas
Shock Detection	Built-in G sensor
Humidity	Detects camera’s internal humidity
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer	50 MB video buffer for JPEG snapshot images
Video Recording	Event recordings stored on the SD card
Software Requirements
Memory Size	2 GB
Operating System	Windows 7 or above
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0C or above
Physical Characteristics
Housing	Metal IP67 Transparent Glass cover
Dimensions	83 x 168 x 233 mm (3.27 x 6.61 x 8.78 in)
Weight	1630 g (3.59 lb)
Installation	Wall mounting (standard)
Protection	-CT models: PCB conformal coating
Environmental Limits
Operating Temperature	Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Ingress Protection	IEC 60529, IP67
Salt Spray Test	ASTM B368 (CASS), 125 hours
Altitude	2000 m
Standards and Certifications
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Railway Fire Protection	EN 45545-2
Safety	UL 60950-1
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
Railway	EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
Time	480,269 hrs
Standards	Telcordia SR332
Warranty
Warranty Period	5 years Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for VPort 06EC-2V Series		Datasheet	V1.1	31 December 2019

VPort 06EC-2V36M

Lens	3.6 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	-

VPort 06EC-2V36M-T

Lens	3.6 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	-

VPort 06EC-2V36M-CT

Lens	3.6 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	✓

VPort 06EC-2V36M-CT-T

Lens	3.6 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	✓

VPort 06EC-2V42M

Lens	4.2 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	-

VPort 06EC-2V42M-T

Lens	4.2 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	-

VPort 06EC-2V42M-CT

Lens	4.2 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	✓

VPort 06EC-2V42M-CT-T

Lens	4.2 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	✓

VPort 06EC-2V60M

Lens	6.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	-

VPort 06EC-2V60M-T

Lens	6.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	-

VPort 06EC-2V60M-CT

Lens	6.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	✓

VPort 06EC-2V60M-CT-T

Lens	6.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	✓

VPort 06EC-2V80M

Lens	8.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	-

VPort 06EC-2V80M-T

Lens	8.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	-

VPort 06EC-2V80M-CT

Lens	8.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-25 to 55°C
Conformal Coating	✓

VPort 06EC-2V80M-CT-T

Lens	8.0 mm
Local Storage	microSD slot, SDXC interface
Operating Temp.	-40 to 75°C
Conformal Coating	✓
