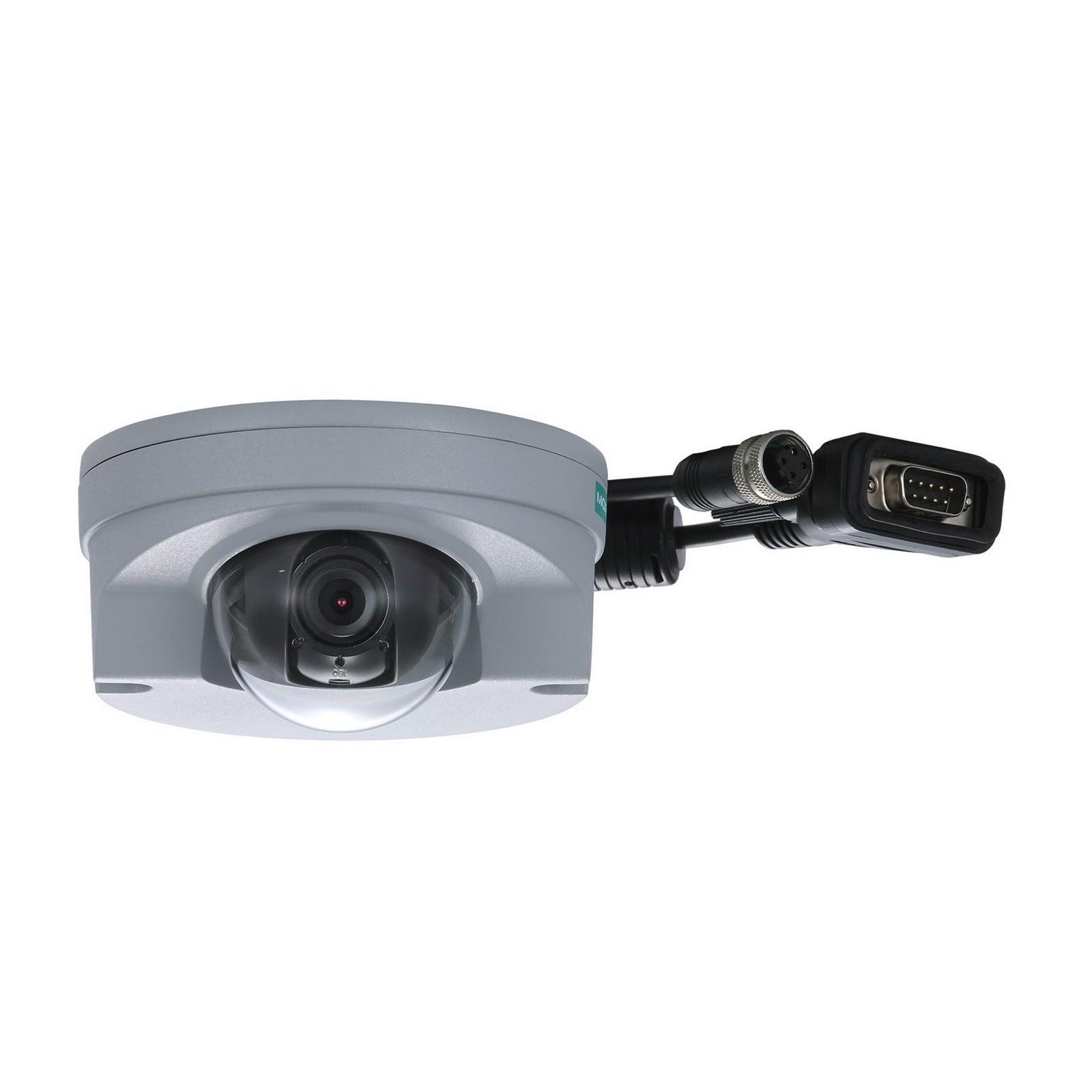

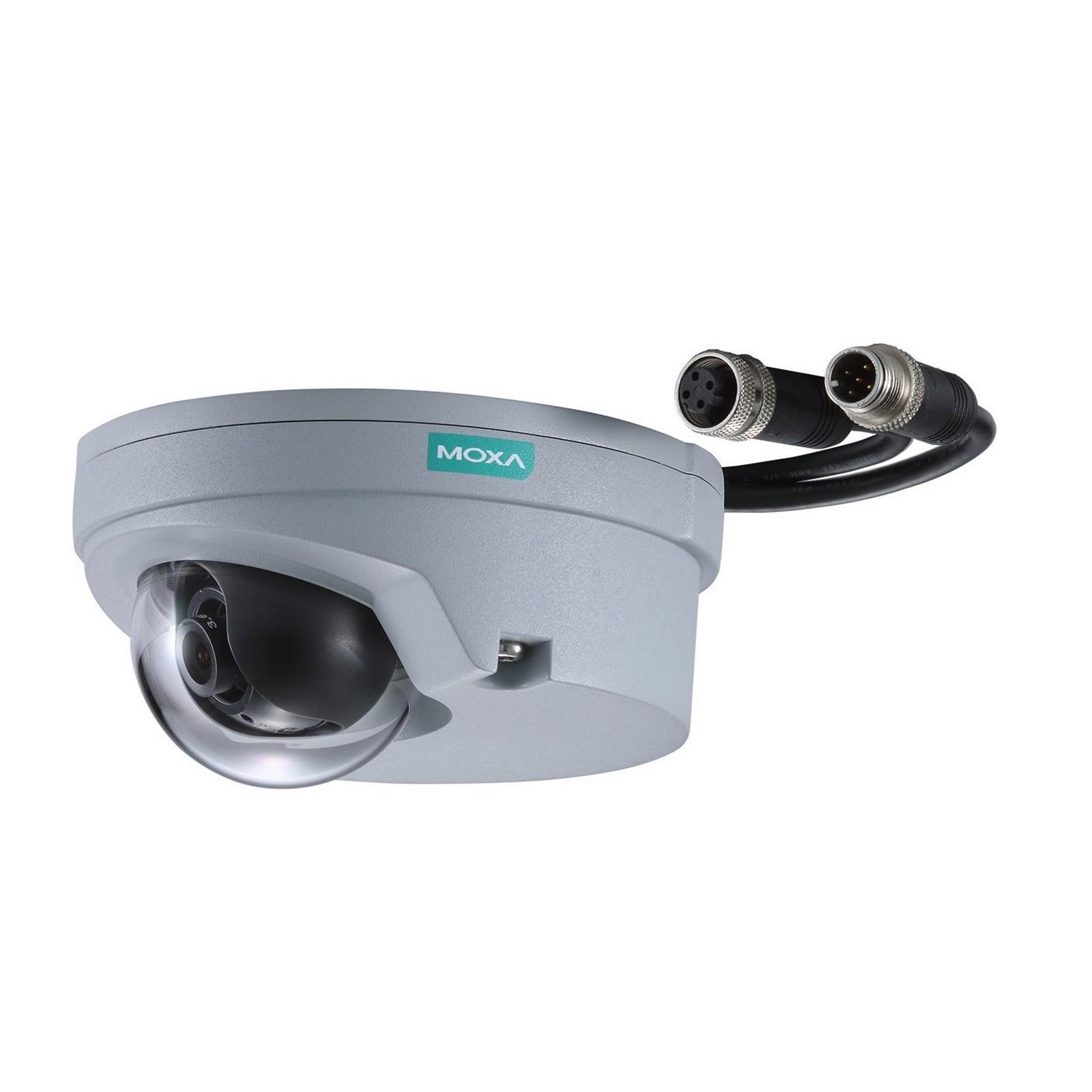

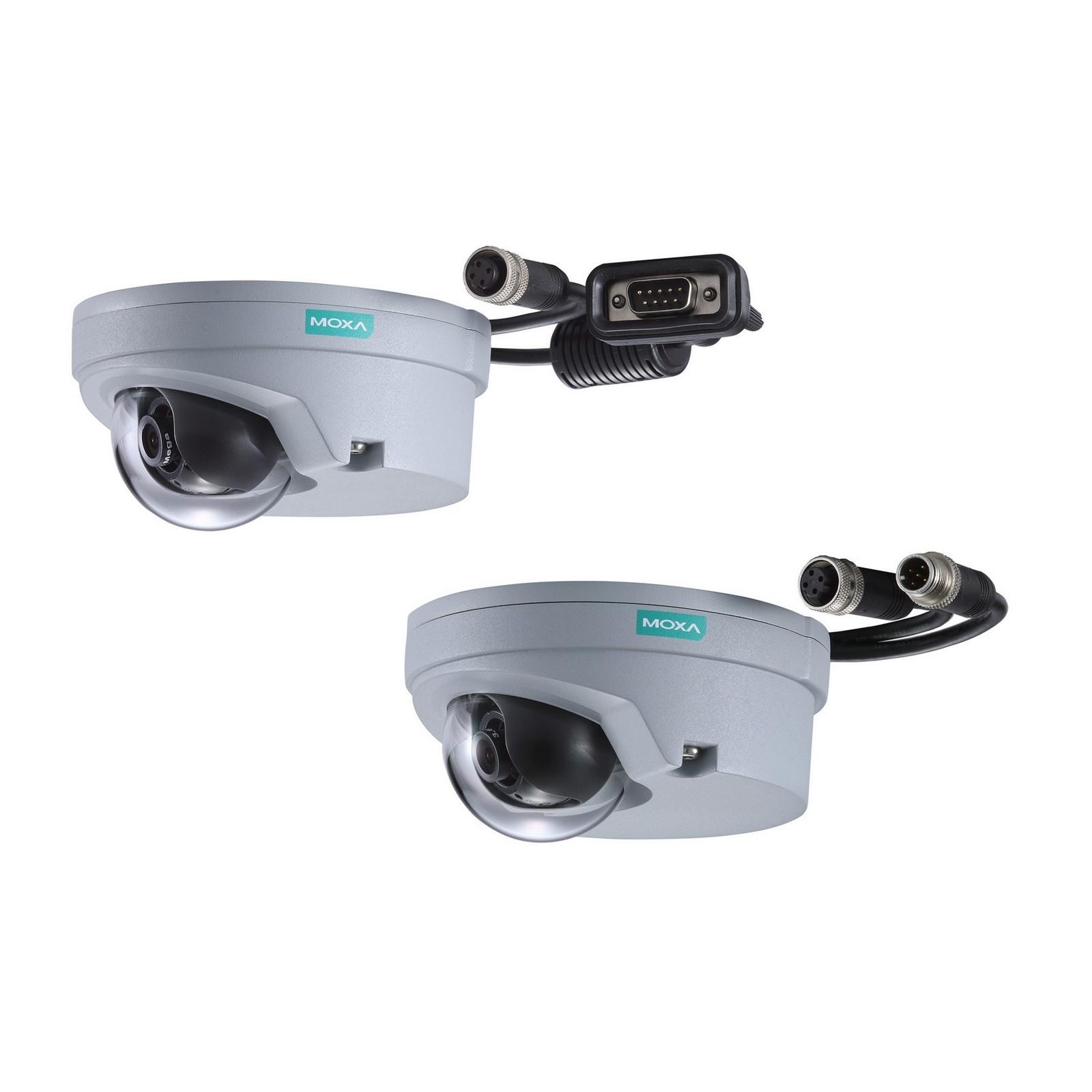

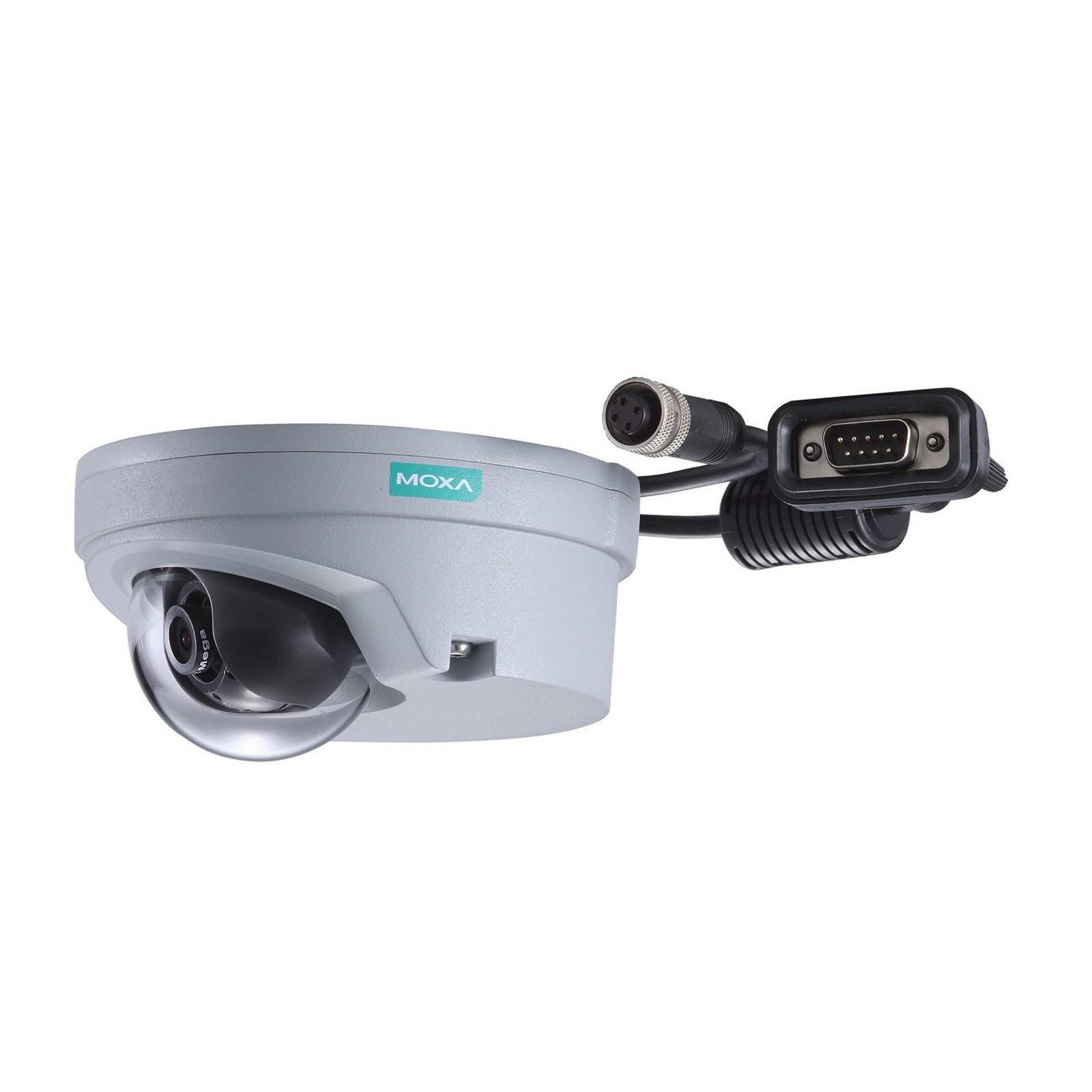

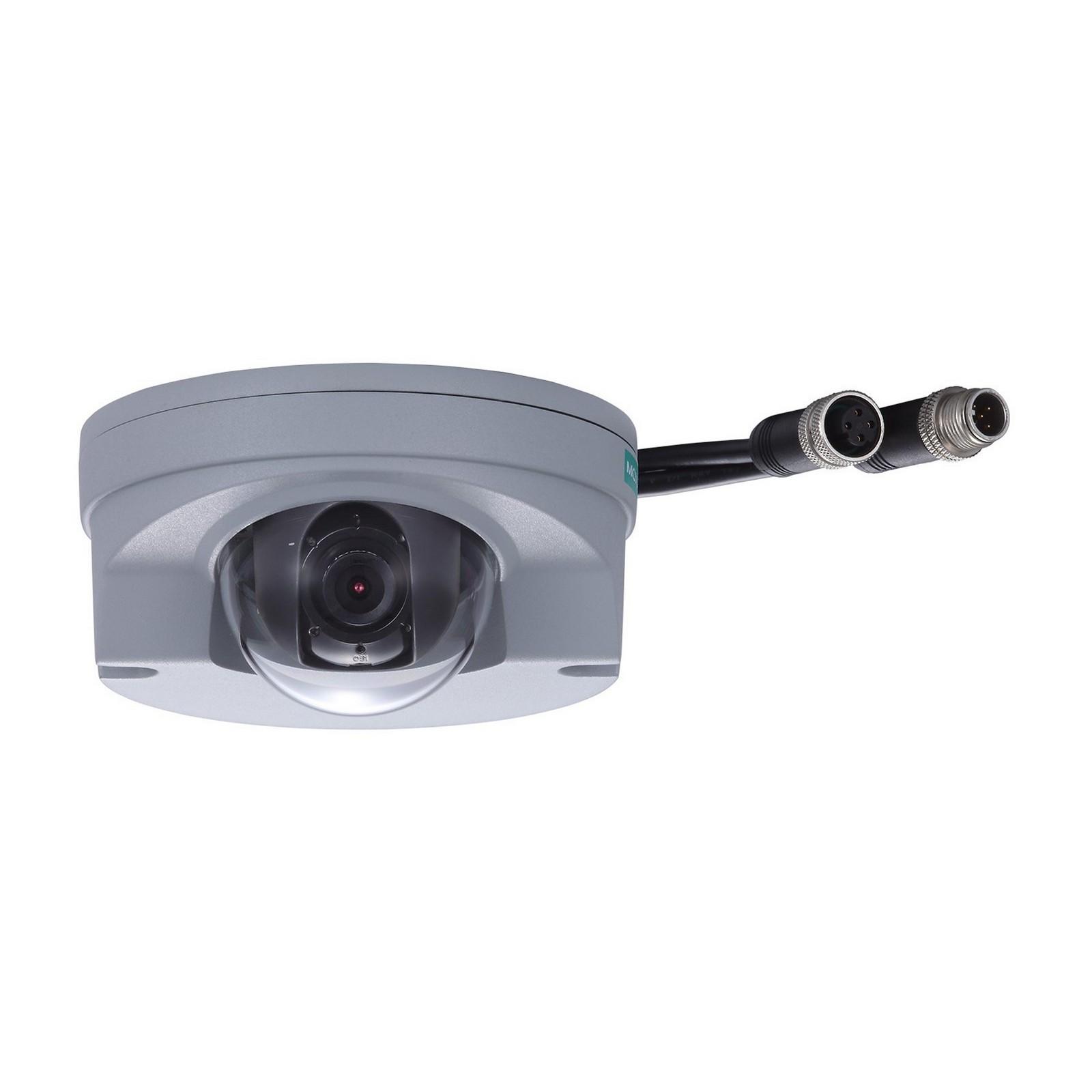

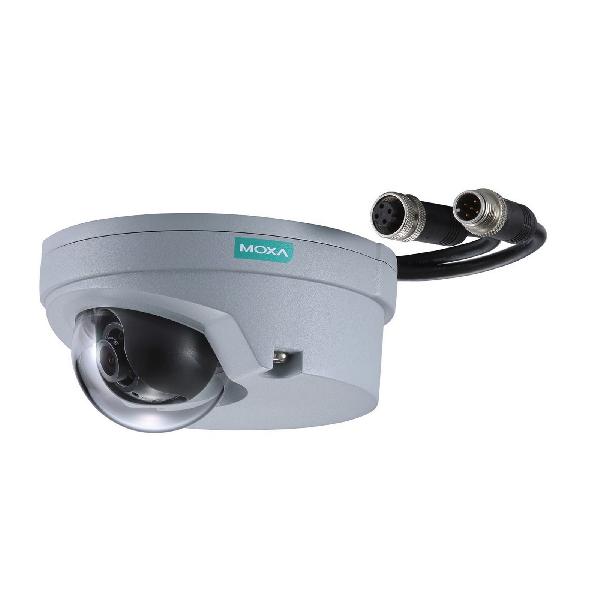

The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155, and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards up to 2 TB, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66-rated, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.
Memory | |
| microSD Slot | SDXC |
Input/Output Interface | |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA |
| Connector | VPort P06-2 Series: 5-pin male M12 connector with 20 cm cable VPort 06-2 Series: DB9 male |
Ethernet Interface | |
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | VPort P06-2 Series: 1 |
| 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | VPort P06-2 Series: 1 |
Ethernet Software Features | |
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP |
Security Functions | |
| Password | User-level password protection |
| Filter | IP address |
| Encryption | HTTPS |
Power Parameters | |
| No. of Power Inputs | 1 |
| Source of Input Power | VPort P06-2 Series: PoE (IEEE 802.3af) |
| Input Voltage | VPort 06-2 Series: 12/24 VDC |
| Input Current | VPort 06-2 Series: 0.86 A @ 12 VDC; 0.38 A @ 24 VDC VPort P06-2 Series: 0.17 A @ 48 VDC |
| Power Connector | VPort 06-2 Series: DB9 connector |
Camera Characteristics | |
| Sensor | 1/3-in 1080P progressive scan CMOS |
| Lens | VPort 06/P06-2x25M Series: f=2.5 mm, F1.6, Diagonal 120°, Horizontal 101°, Vertical 57° VPort 06/P06-2x36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39° VPort 06/P06-2x42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34° VPort 06/P06-2x60M Series: f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24° VPort 06/P06-2x80M Series: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17° |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| DNR (digital noise reduction) | Built-in 2D/3D DNR |
| WDR (wide dynamic range) | 100 dB |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| Camera Angle | Pan: ±15°, Tilt: 0° to 90° (controlled manually) Note: Tilt of 2.5 mm lens model is 30° to 60° |
Video Interface | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| Video Resolution and FPS (frames per second) | Read more |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients |
Audio Interface | |
| Audio Format | Mono, PCM (G.711) AAC |
| Audio Inputs | VPort 06/P06-2MxxM Series: 1 x built-in microphone VPort 06-2LxxM Series: 1 x line-in, with DB9 connector VPort P06-2LxxM Series: 1 x line-in, with M12 connector |
Camera Software Development | |
| Video Standards | ONVIF Profile S |
Camera Alarm Software Features | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Shock Detection | Built-in G sensor |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-Alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Video Recording | Event recordings stored on the SD card |
Software Requirements | |
| Memory Size | 2 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
Physical Characteristics | |
| Housing | IP66 rain and dust protection Metal housing, PC dome cover IK8 vandal resistant protection |
| Dimensions | 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in) |
| Weight | 620 g (1.37 lb) |
| Installation | Panel mounting |
| Protection | -CT models: PCB conformal coating |
Environmental Limits | |
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Ingress Protection | IEC 60529, IP66 |
| Vandal Resistance | EN 62262, IK8 |
| Altitude | 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
Standards and Certifications | |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Railway Fire Protection | EN 45545-2 |
| Safety | UL 60950-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Railway | EN 50155 (complies with a portion of EN 50155 specifications), GB/T 24338.4-2009 |
MTBF | |
| Time | VPort 06-2LXXM Series: 1,063,089 hrs VPort 06-2MXXM Series: 1,039,008 hrs VPort P06-2LXXM Series: 1,075,216 hrs VPort P06-2MXXM Series: 1,050,590 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for VPort 06-2 Series | Datasheet | V1.1 | 31 December 2019 |
