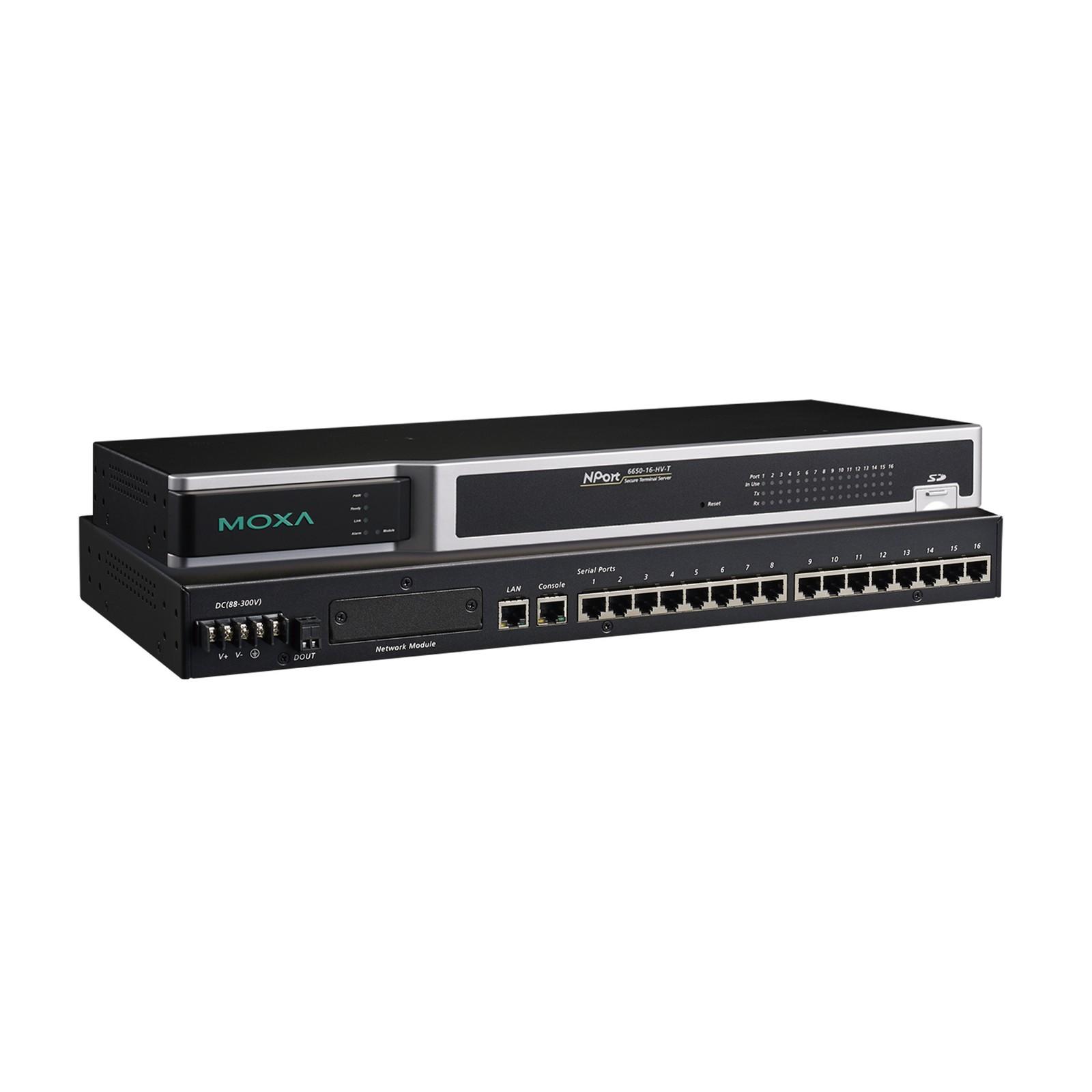

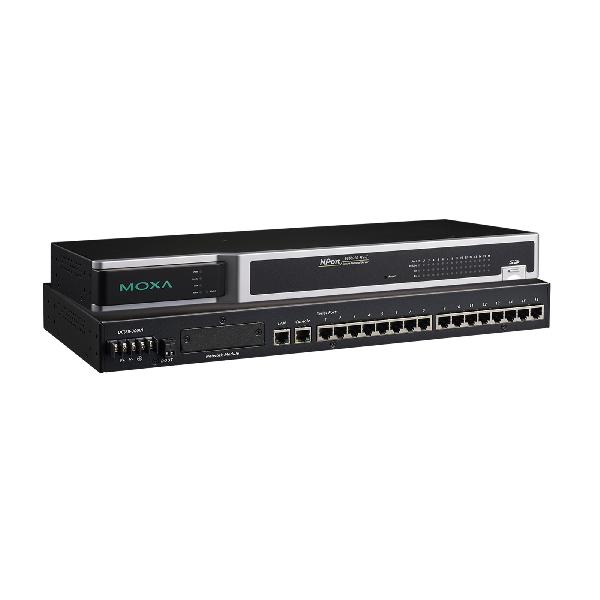

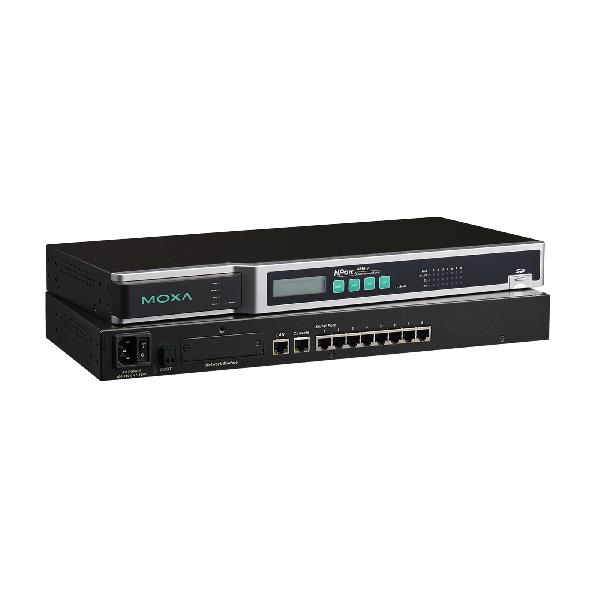

NPort 6400/6600 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Terminal Servers

4/8/16/32-port RS-232/422/485 secure terminal servers

Product Feature

  • LCD panel for easy IP address configuration (standard temp. models)
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Nonstandard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443

Introduction

The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.



No Data Loss If Ethernet Connection Fails

The NPort® 6000 is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6000 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6000 will immediately release all data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.



LCD Panel Makes Configuration Easy

The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.

Note: The LCD panel is only available with standard-temperature models.


Adjustable Resistor Values for RS-485 Communication

The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches.

Memory

SD SlotUp to 32 GB (SD 2.0 compatible)

Input/Output Interface

Alarm Contact ChannelsResistive load: 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)		1
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)
Optical FiberRead more

Ethernet Software Features

Configuration OptionsWeb Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console,
Windows Utility
ManagementARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP,
SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE
5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later
MIBMIB-II
Time ManagementSNTP Client
Unicast RoutingRIPV1/V2, Static Route
AuthenticationLocal Account Accessibility, RADIUS, TACACS+

Serial Interface

ConnectorNPort 6600 Series: 8-pin RJ45
NPort 6450 Series: DB9 male
No. of PortsNPort 6450 Series: 4
NPort 6600-8 Series: 8
NPort 6600-16 Series: 16
NPort 6600-32 Series: 32
Serial StandardsNPort 6610 Series: RS-232
NPort 6450/6650 Series: RS-232, RS-422, RS-485
Secure Operation ModesReverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP
Client, Secure TCP Server, SSH
Standard Operation ModesDisabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM,
Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate50 bps to 921.6 kbps (supports non-standard baudrates)
Console PortNPort 6600 Series: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlRTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485NPort 6450 / 6650 Series: 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction ControlNPort 6450 / 6650 Series: Supports
Terminator for RS-485NPort 6450/6650 Series: 120 ohms

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentNPort 6450 Series: 730 mA @ 12 VDC

NPort 6600 Series
DC Models: 293 mA @ 48 VDC, 200 mA @ 88 VDC
AC Models: 140 mA @ 100 VAC (8 ports), 192 mA @ 100 VAC (16 ports), 285 mA @ 100 VAC (32 ports)
Input VoltageNPort 6450 Series: 12 to 48 VDC

NPort 6600 Series
AC Models: 100 to 240 VAC
DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC)

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

HousingMetal
Dimensions (with ears)NPort 6450 Series: 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in)
NPort 6600 Series: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Dimensions (without ears)NPort 6450 Series: 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in)
NPort 6600 Series: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
WeightNPort 6450 Series: 1,020 g (2.25 lb)
NPort 6600-8 Series: 3,460 g (7.63 lb)
NPort 6600-16 Series: 3,580 g (7.89 lb)
NPort 6600-32 Series: 3,600 g (7.94 lb)
Interactive InterfaceLCD panel display (non-T models only)
Push buttons for configuration (non-T models only)
InstallationNPort 6450 Series: Desktop, DIN-rail mounting, Wall mounting
NPort 6600 Series: Rack mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)		Standard/Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSNPort 6450 Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

NPort 6600 Series (except -48V/-HV models):
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

NPort 6600-48V Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

NPort 6650-HV Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
SafetyUL 60950-1
Traffic ControlNEMA TS2
VibrationIEC 60068-2-6
FreefallIEC 60068-2-34

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeNPort 6450 Series: 850,905 hrs
NPort 6610-8 Series: 135,891 hrs
NPort 6610-16 Series: 102,373 hrs
NPort 6610-32 Series: 68,707 hrs
NPort 6650-8 Series: 636,600 hrs
NPort 6650-16 Series: 439,673 hrs
NPort 6650-32 Series: 310,078 hrs
NPort 6650-8-HV-T: 501,171 hrs
NPort 6650-16-HV-T: 380,006 hrs
NPort 6650-32-HV-T: 290,914 hrs
StandardsNPort 6450 Series: Telcordia (Bellcore) Standard TR/SR
NPort 6600 Series: Telcordia (Bellcore) Standard

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 6400/6600 Series Datasheet V1.2 17 Febuary 2020

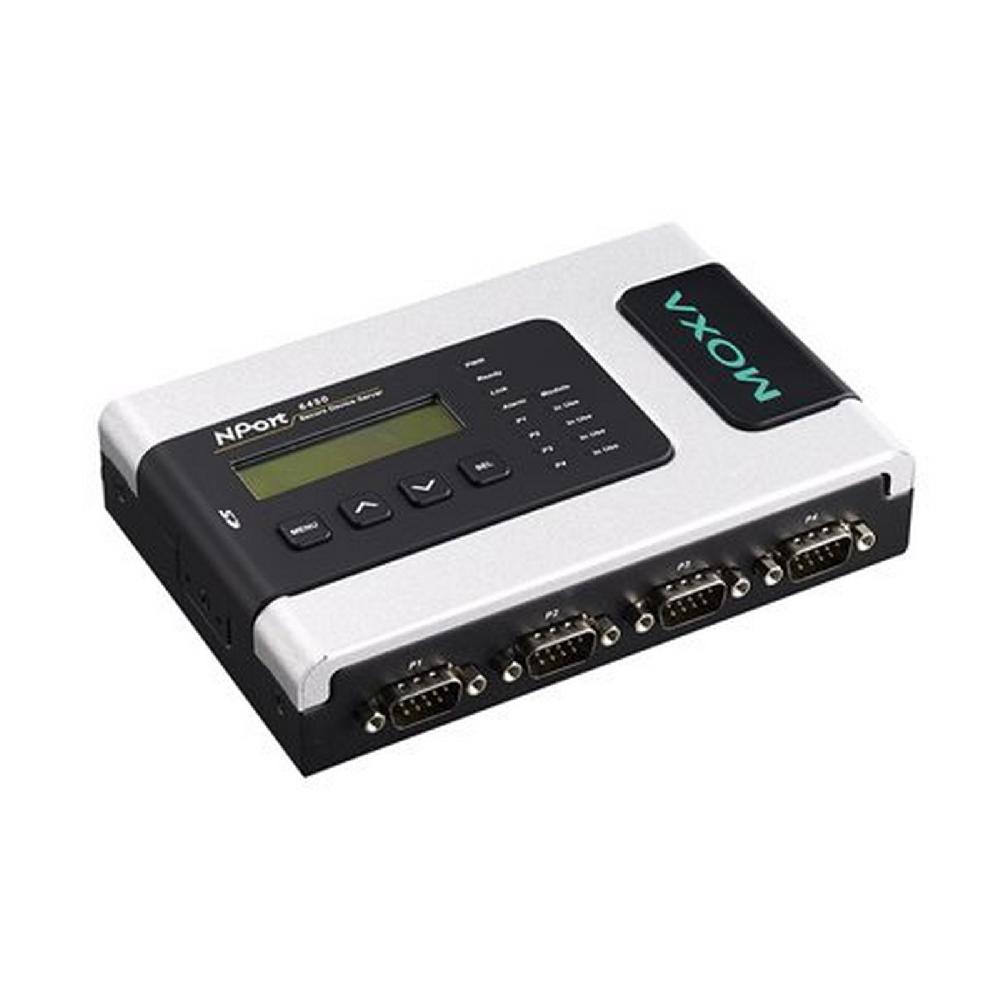

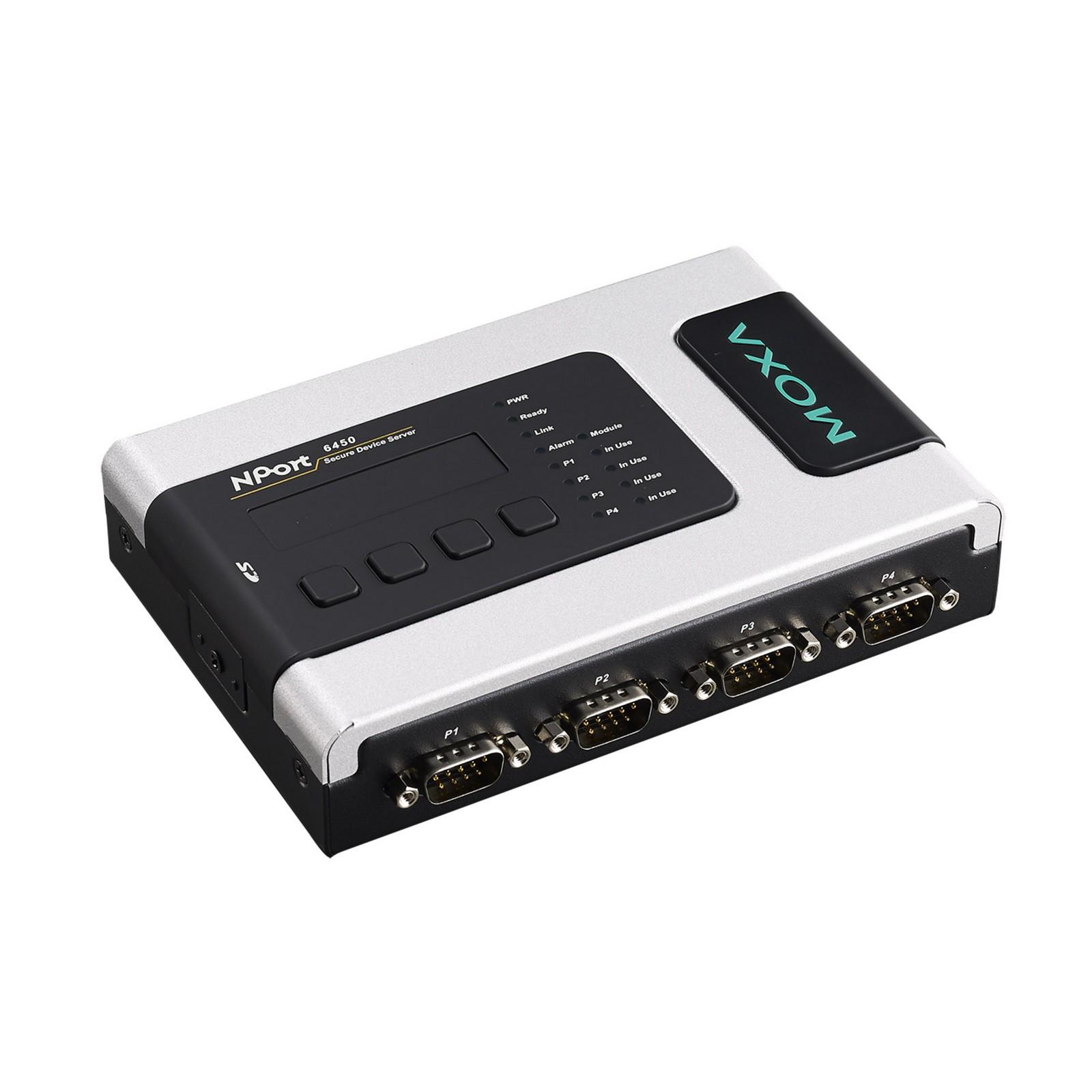

NPort 6450

No. of Serial Ports 4
Serial Standards RS-232/422/485
Serial Interface DB9 male
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

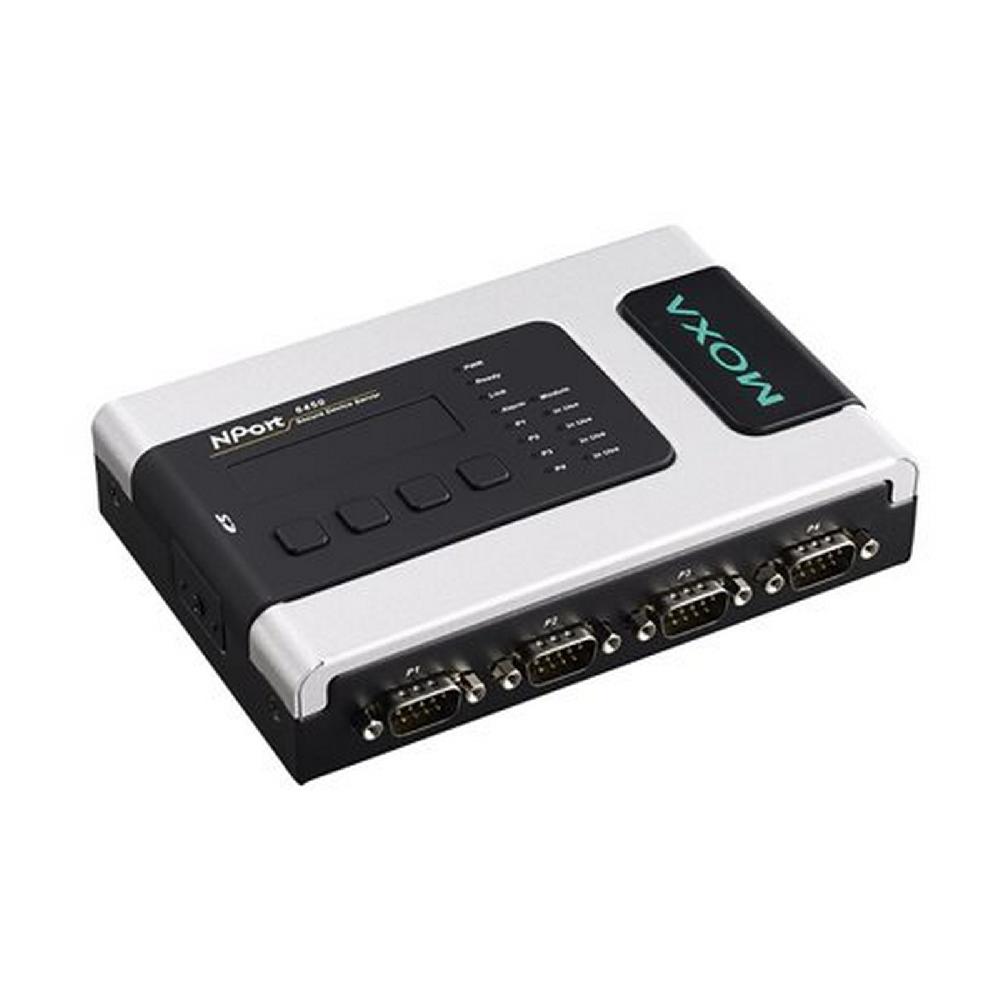

NPort 6450-T

No. of Serial Ports 4
Serial Standards RS-232/422/485
Serial Interface DB9 male
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC

NPort 6610-8

No. of Serial Ports 8
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

NPort 6610-8-48V

No. of Serial Ports 8
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

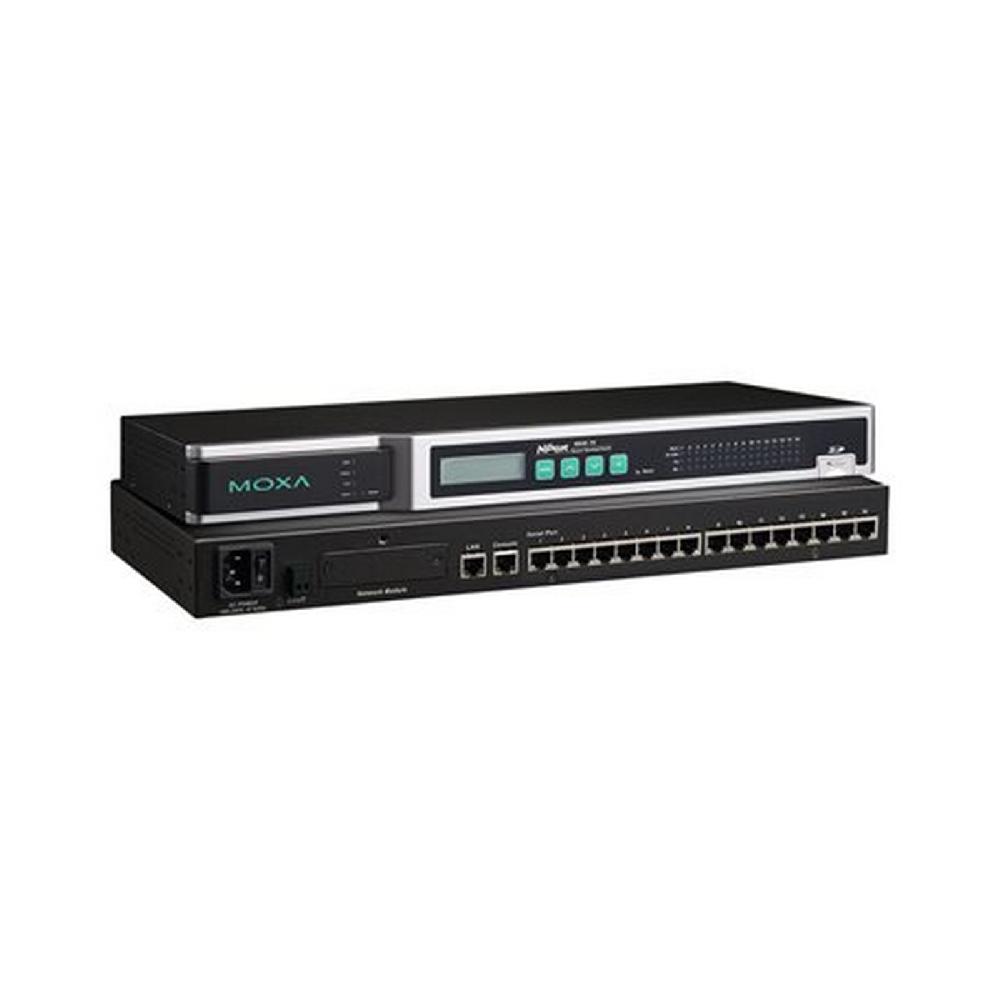

NPort 6610-16

No. of Serial Ports 16
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

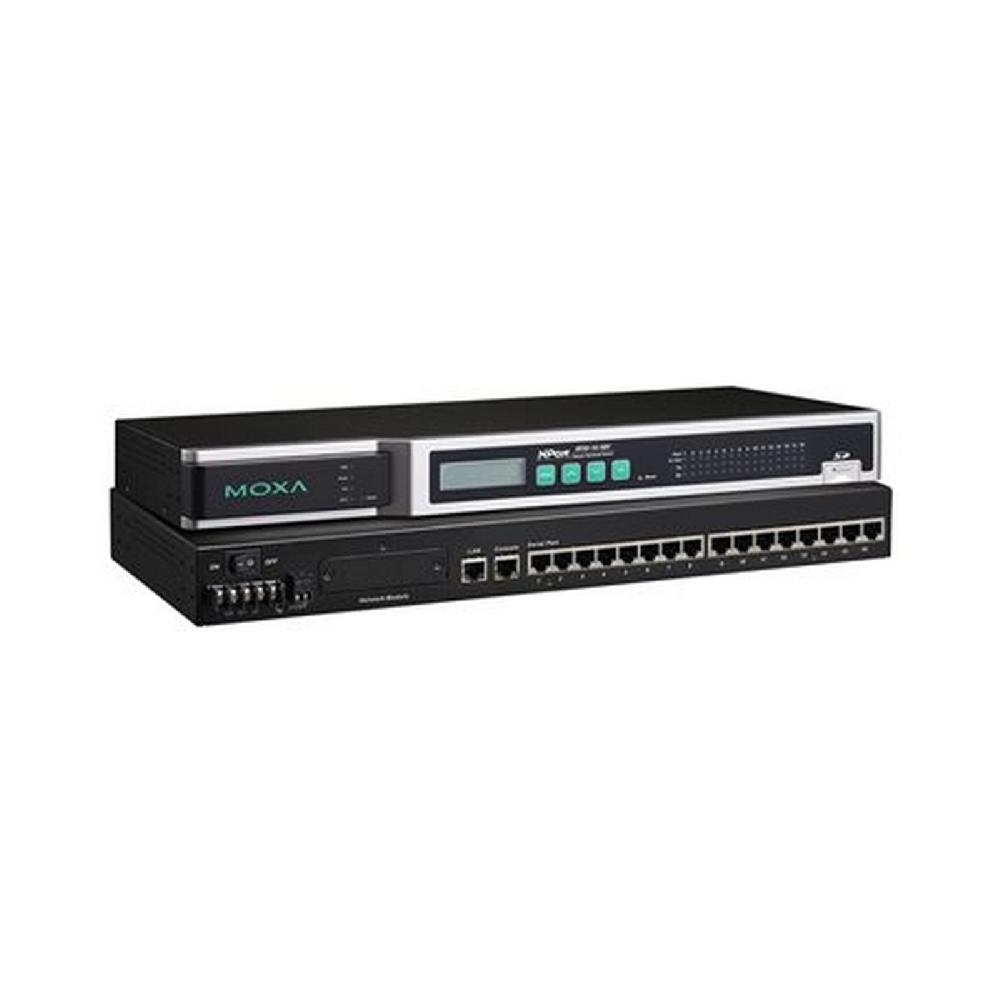

NPort 6610-16-48V

No. of Serial Ports 16
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

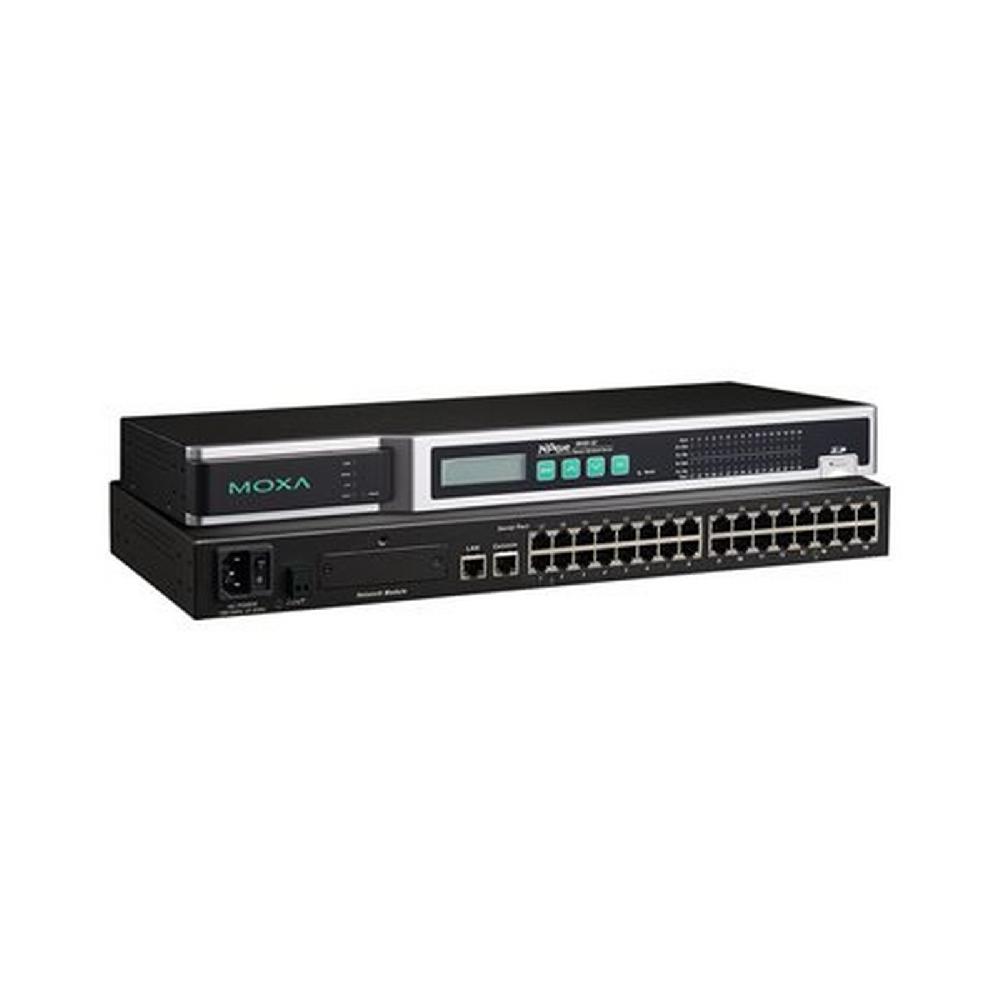

NPort 6610-32

No. of Serial Ports 32
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

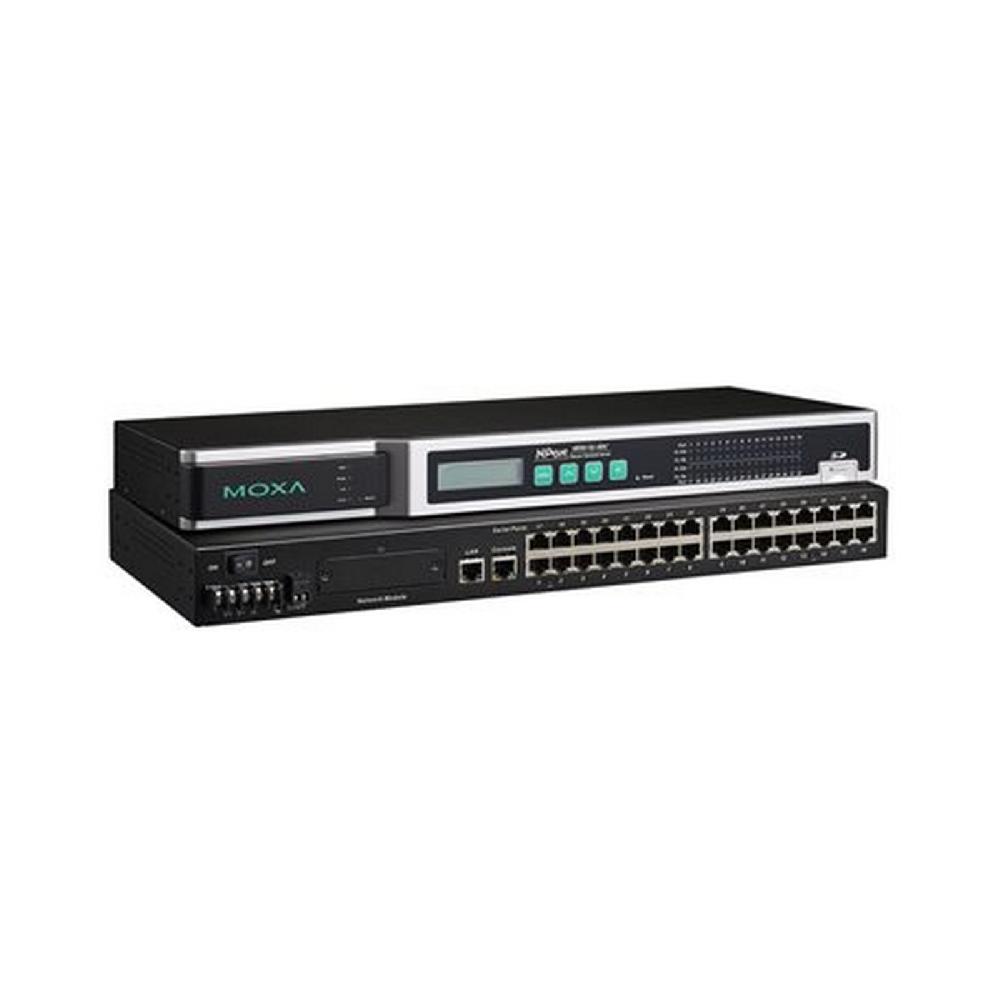

NPort 6610-32-48V

No. of Serial Ports 32
Serial Standards RS-232
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

NPort 6650-8

No. of Serial Ports 8
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

NPort 6650-8-T

No. of Serial Ports 8
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. -40 to 75°C
Input Voltage 100-240 VAC

NPort 6650-8-HV-T

No. of Serial Ports 8
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. -40 to 85°C
Input Voltage 110 VDC; 88 to 300 VDC

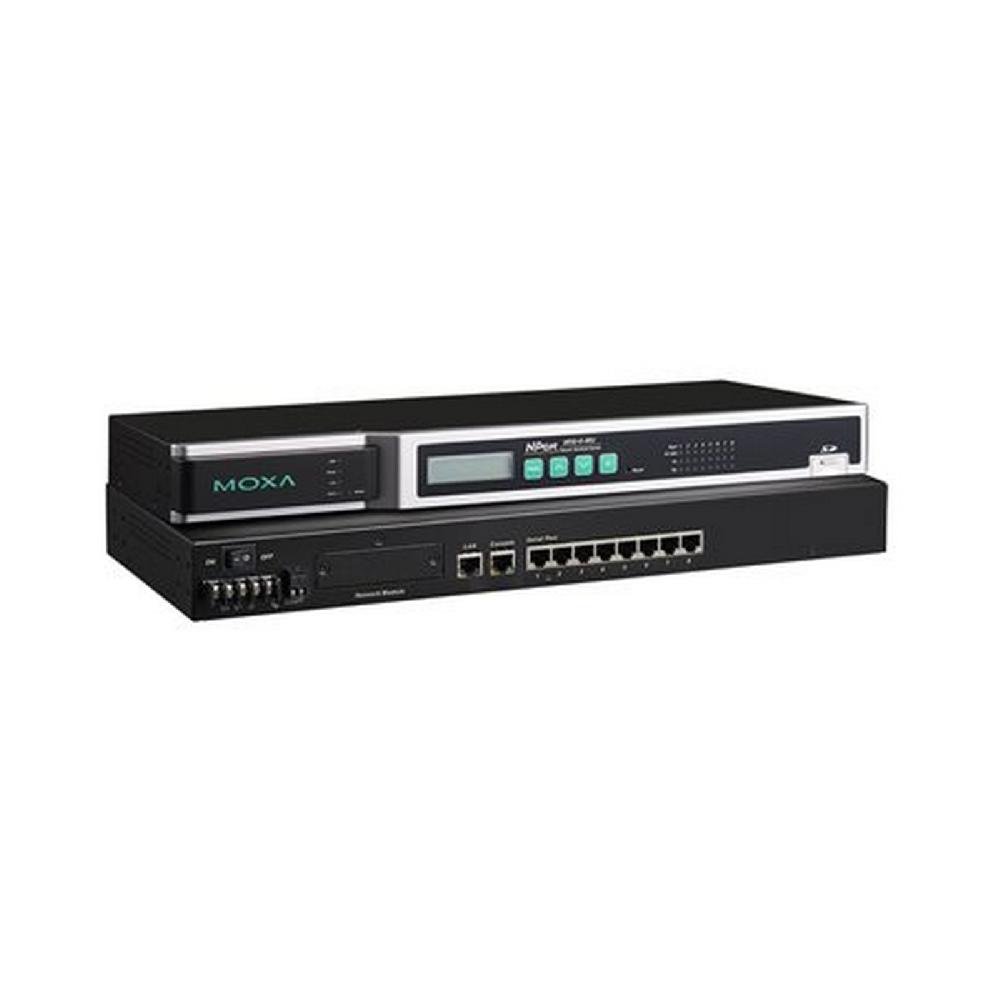

NPort 6650-8-48V

No. of Serial Ports 8
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

NPort 6650-16

No. of Serial Ports 16
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

NPort 6650-16-48V

No. of Serial Ports 16
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

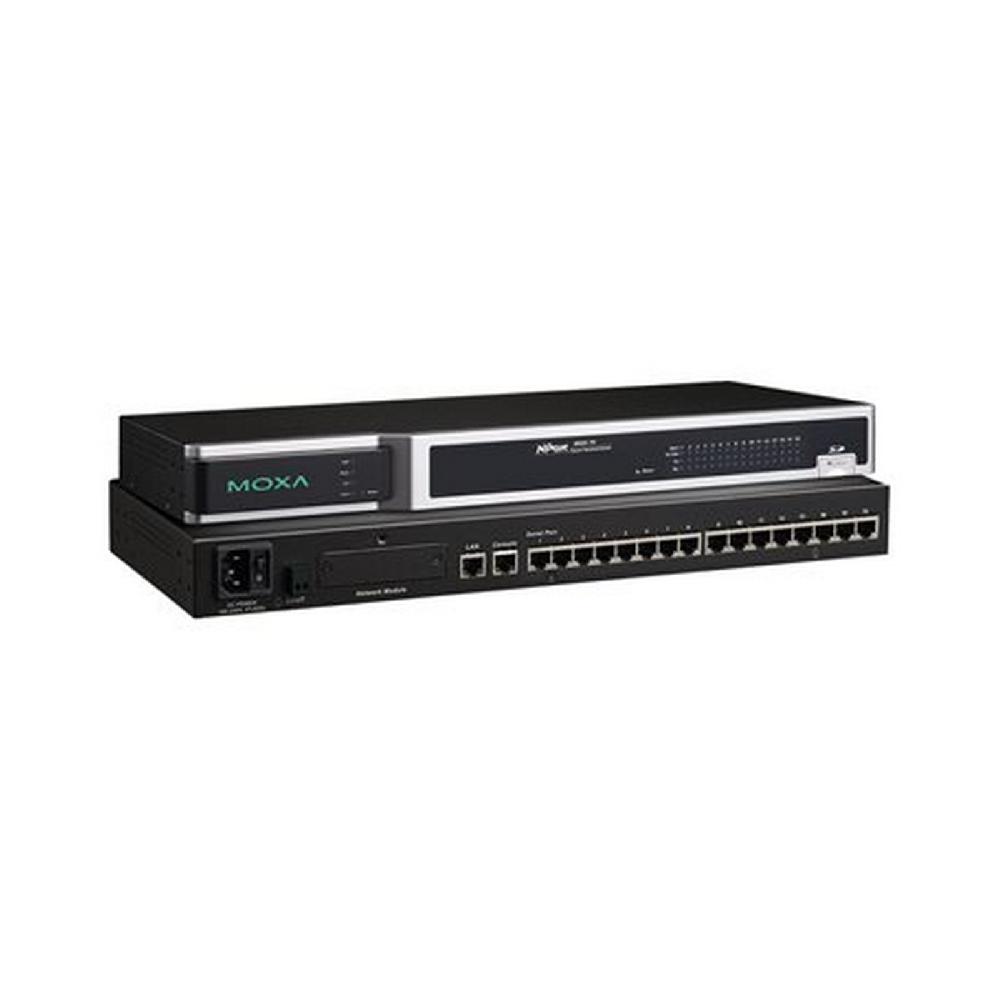

NPort 6650-16-T

No. of Serial Ports 16
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. -40 to 75°C
Input Voltage 100-240 VAC

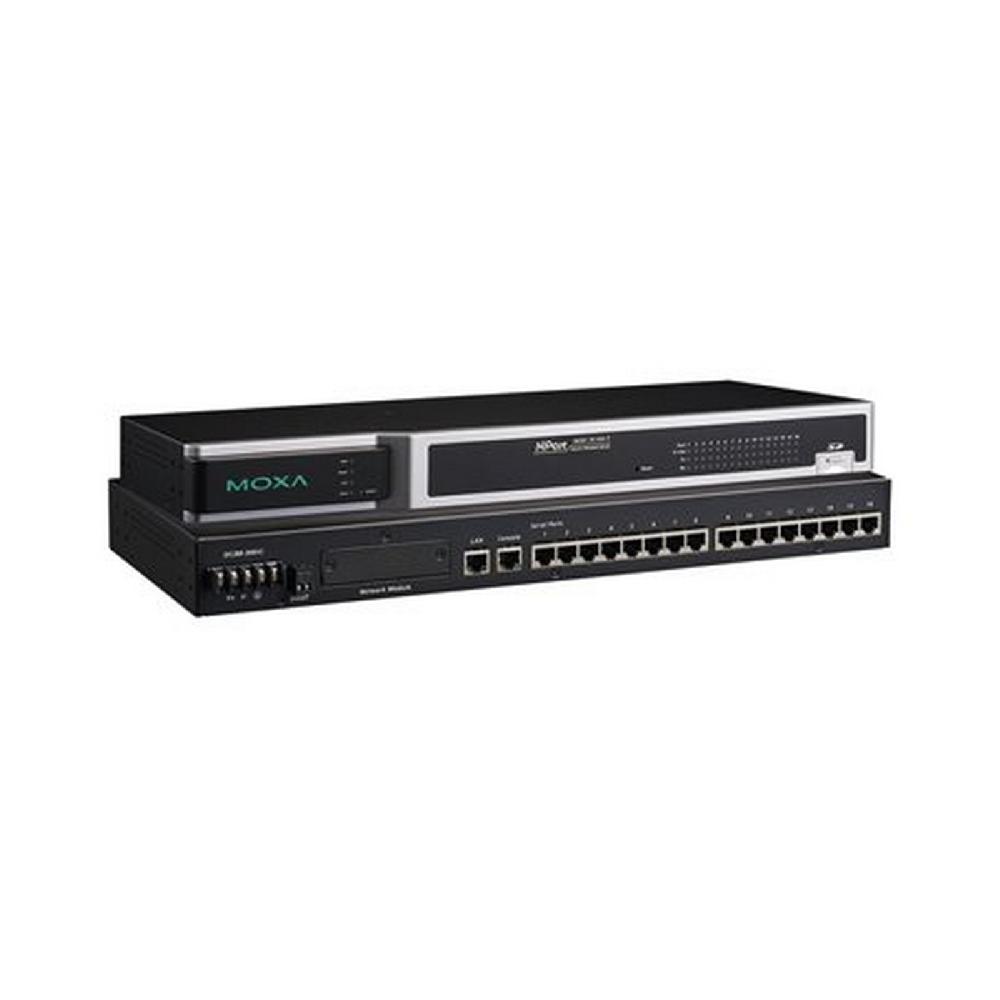

NPort 6650-16-HV-T

No. of Serial Ports 16
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. -40 to 85°C
Input Voltage 110 VDC; 88 to 300 VDC

NPort 6650-32

No. of Serial Ports 32
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 100-240 VAC

NPort 6650-32-48V

No. of Serial Ports 32
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. 0 to 55°C
Input Voltage 48 VDC; +20 to +72 VDC, -20 to -72 VDC

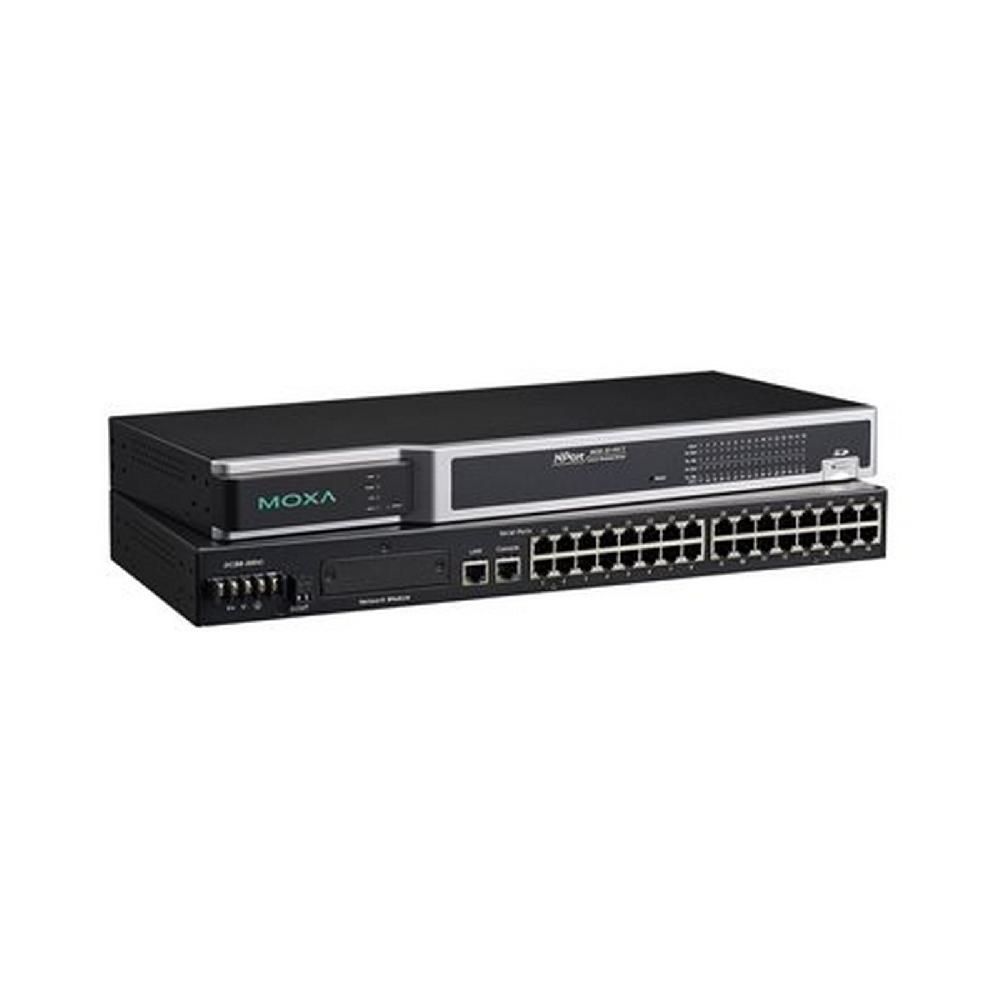

NPort 6650-32-HV-T

No. of Serial Ports 32
Serial Standards RS-232/422/485
Serial Interface 8-pin RJ45
Operating Temp. -40 to 85°C
Input Voltage 110 VDC; 88 to 300 VDC
